Industrial Electromagnetic Power-Off Brake for Gear Motors – TJ-D Series, ISO CE RoHS Certified, Ensures Safety & High Reliability

Product Description

Gear Motor Brake Electromagnetic Power Off Industrial Brake Power Off New details

We are the factory in DongGuan professionally produce transmission parts for machines

Advantage:

Rapid Response The electromagnetic brake activates upon power-on and brakes immediately upon power-off, with a short response time (millisecond-level), making it ideal for high-frequency start-stop operations. High-Precision Control Adjusting braking torque via current enables precise position and speed control (e. g., in automated equipment and robots). Zero Friction Loss Non-contact braking eliminates mechanical wear, ensuring long service life and low maintenance costs. Strong Environmental Adaptability A sealed design provides dustproof and oil-resistant protection, suitable for harsh environments such as high temperatures, humidity, or dusty conditions (e. g., textile or mining machinery). Energy Efficiency Power is consumed only in the released state, while braking relies on springs or permanent magnets, resulting in low energy consumption. Enhanced Safety Automatic braking upon power loss prevents equipment sliding (e. g., emergency braking in elevators or cranes).

Gear Motor Brake Electromagnetic Power Off Industrial Brake Power Off New supplier

Gear Motor Brake Electromagnetic Power Off Industrial Brake Power Off New factory

Note:

Because each model weight has a big difference, so it will produce different shipping charge. you are recommended to get only model no. TJ-D-20 on this page. if you need to get other model, please click follow recommend products.

Specification

Installation precautions:

1. The surface of the friction piece and armature shall not be greasy and must be kept clean;

2. Installation can not tilt, to ensure verticality and levelness;
3. The installation bolts should be locked;
4. Voltage 24V power 60W

Considerations for Selection

1. Flange: can be directly installed on the motor, the installation method is simple, high IP level must be added Dust jacket, dust plate, need to add mounting flange or add groove on the end face of the motor
2. According to the actual demand to determine the torque range, power and size specifications of electromagnetic brake
parameters; The torque of power off brake should be greater than the torque required by the load of the motor.
3. Determine the type of electromagnetic brake, is power off type or power, is dry or wet type
4. Confirm motor power, torque size, installation method, application equipment and machine, send data, etc

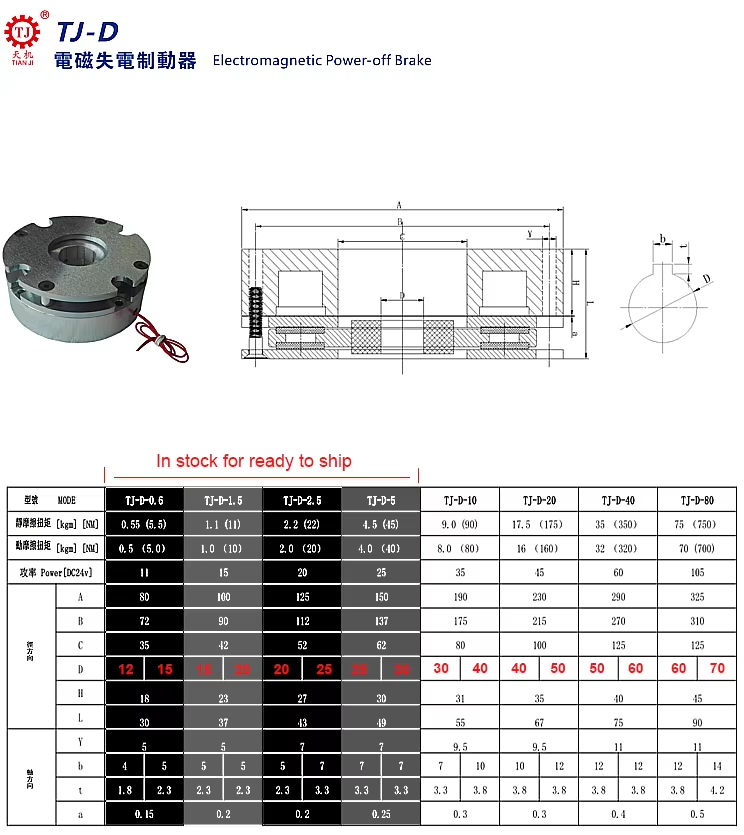

5. The following table shows the parameters of each specification of power off brake

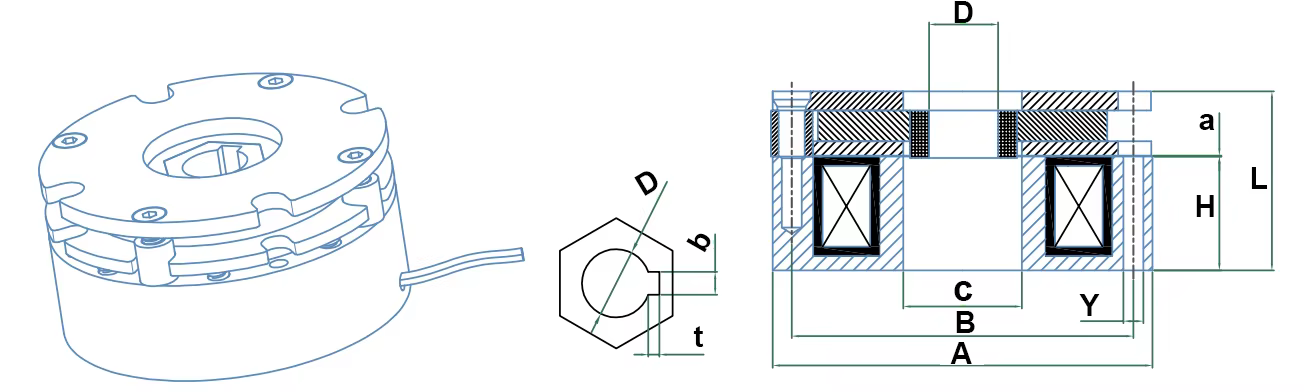

gear motor brake electromagnetic power off industrial brake power off new-0

MODE		TJ-D-0.6	TJ-D-1.5	TJ-D-2.5	TJ-D-5	TJ-D-10	TJ-D-20	TJ-D-40	TJ-D-80
摩擦扭矩[kgm][NM]		0.55 (5.5)	1.1 (11)	2.2 (22)	4.5 (45)	9.0 (90)	17.5 (175)	35 (350)	75 (750)
摩擦扭矩[kgm][NM]		0.5 (5.0)	1.0 (10)	2.0 (20)	4.0 (40)	8.0 (80)	16 (160)	32 (320)	70 (700)
功率 Power [DC24V]		11	15	20	25	35	45	60	105
径方向 Diameter direction	A	80	100	125	150	190	230	290	325
	B	72	90	112	137	175	215	270	310
	C	35	42	52	62	80	100	125	125
	D	12 / 15	15 / 20	20 / 25	25 /30	30 / 40	40 / 50	50 / 60	60 / 70
	H	18	23	27	30	31	35	40	45
	L	30	37	43	49	55	67	75	90
轴方向 direction of principal axis	Y	5	5	7	7	9.5	9.5	11	11
	b	4 / 5	5 / 5	5 / 7	7 / 7	7 / 10	10 / 12	12 / 12	12 / 14
	t	1.8 / 2.3	2.3 / 2.3	2.3 / 3.3	3.3 / 3.3	3.3 / 3.8	3.8 / 3.8	3.8 / 3.8	3.8 / 4.2
	a	0.15	0.2	0.2	0.25	0.3	0.3	0.4	0.5

Electromagnetic dry brake (power off brake) Structure, working principle and application

Electromagnetic power failure brake (power failure brake) for electric electromagnetic pull, power failure friction brake type brake, It consists of magnetic hoop, excitation coil, spring, brake disc, armature, spline sleeve, installation screw and so on.

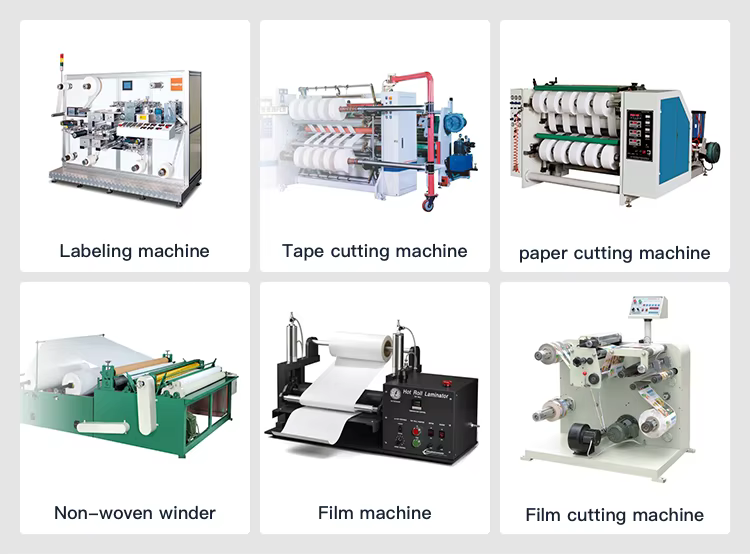

Mainly with the Y series A new YEJ series electromagnetic brake three-phase asynchronous motor is generated. Widely used in metallurgy, construction, Chemical industry, food, stage, elevator, machine tool, packaging, ship and other machinery. Fast parking and accurate positioning, Braking, etc.

gear motor brake electromagnetic power off industrial brake power off new-1

Why Choose Us

Eight reasons to choose us:

1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

Five Core strengths:
1. The first domestic independent R & D manufacturer and 14 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.

Packing & Delivery

gear motor brake electromagnetic power off industrial brake power off new-2

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

DongGuan TaiJi Speed Reducer Clutch Company is a professional industrial transmission parts manufacturer, which headquarter in Taiwan. After many years efforts with all staffs , from general-purpse prodcuts to the new products development and now could provide different products to our clients.We always insist on the "Diligence,Honesty,Trust " in order to win constantly support from our customers and aslo establish "TianJi" Brand to the public with a good image.

Now our company has set up branch in DongGuan in 2005 mainly produce professional reducer , motor,industrial brake ,clutch and other transmission parts with extensive professional experience from TaiWan , combined with imports of machinery processing equipments.Our stringent quality requirements and constant innovation has become the industry leader and can produce products accordance with customer requirements.

Customers and services: we rely on the recognition of customers,we are able to mobilize all our recources to win the trust from customers, we will continue to keep the products with higher performance and quality , faster market reaction speed , greater cost control , to make a success to our customers .We insist on establish organization ,process chart , regulation based on customer need.


FCC certificate for motor	ISO9001:2015 certificate	CE certificate for clutch

FAQ

1. When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts. For air shafts, air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.

4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.

5. What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
