magnetic slip clutch

A magnetic slip clutch represents an innovative power transmission device that utilizes magnetic force to transfer torque between rotating shafts while providing automatic protection against overload conditions. This sophisticated mechanism operates without physical contact between the driving and driven components, relying instead on the attraction between permanent magnets or electromagnets to transmit rotational force. The magnetic slip clutch has become an essential component in modern industrial machinery, offering reliable torque limiting capabilities that protect expensive equipment from damage caused by sudden jams, overloads, or mechanical failures. The fundamental operating principle involves two sets of magnetic poles arranged in close proximity, with one set mounted on the input shaft and the other on the output shaft. Under normal operating conditions, the magnetic attraction between these poles is sufficient to transmit the required torque smoothly and efficiently. However, when the load exceeds a predetermined threshold, the magnetic coupling breaks momentarily, allowing the input shaft to slip relative to the output shaft, thereby preventing damage to downstream equipment. This automatic slipping action occurs without generating excessive heat or causing significant wear, making the magnetic slip clutch an ideal solution for applications requiring consistent torque limitation. The device can be precisely calibrated to slip at specific torque levels, ensuring optimal protection for sensitive machinery while maintaining operational continuity. Modern magnetic slip clutch designs incorporate advanced materials and engineering techniques that enhance performance, durability, and reliability across diverse industrial environments. These devices find widespread application in conveyor systems, packaging machinery, printing equipment, textile manufacturing, and numerous other sectors where controlled torque transmission and equipment protection are paramount concerns for operational efficiency and cost management.

Popular Products

VIEW DETAILS

Dual Axis Single Axis Magnetic Powder Brake Clutch 24V 2.5-40kg Tension Controller

VIEW DETAILS

Adjustable Torque Electromagnetic Clutch Brake Motor 24VDC 8W with Bearing

VIEW DETAILS

Industrial Electromagnetic Clutch Disc Brake Tianji Full Series Motor Core New

VIEW DETAILS

Steel Magnetic Powder Brake Clutch System Automated Torque Adjustment 24V OEM

The magnetic slip clutch delivers substantial benefits that directly impact your operational efficiency and bottom line. First and foremost, this technology eliminates the need for routine mechanical adjustments and frequent maintenance interventions that plague traditional friction-based clutches. You will appreciate how the contactless torque transmission reduces wear and tear on components, resulting in extended service life and fewer unexpected breakdowns that disrupt production schedules. The absence of physical friction means your equipment operates cooler, consuming less energy and reducing cooling requirements in your facility. When overload situations occur, the magnetic slip clutch responds instantly and automatically, protecting your valuable machinery from catastrophic damage that could cost thousands in repairs and lost production time. Unlike mechanical alternatives that require manual reset procedures, this system resumes normal operation immediately once the overload condition clears, minimizing downtime and keeping your production lines running smoothly. The precise torque control capabilities allow you to fine-tune performance according to your specific application requirements, ensuring consistent product quality and process reliability. You gain peace of mind knowing that your investment in expensive downstream equipment remains protected around the clock without requiring constant operator vigilance. Installation proves straightforward, as the magnetic slip clutch integrates seamlessly with existing drive systems without extensive modifications or specialized mounting arrangements. The clean operation produces no dust, debris, or contamination, making it ideal for food processing, pharmaceutical manufacturing, and other environments where cleanliness is critical. Energy efficiency improves because the magnetic coupling transmits power with minimal losses compared to mechanical alternatives that waste energy through friction and heat generation. Your maintenance teams will spend less time performing clutch adjustments and replacements, freeing them to focus on other critical tasks that enhance productivity. The consistent and repeatable slip torque characteristics ensure predictable performance across varying operating conditions, eliminating the performance degradation common with wear-prone mechanical clutches. Sound levels remain low during operation, contributing to a more comfortable working environment for your personnel. The technology adapts easily to different shaft configurations and mounting requirements, providing flexibility in system design and retrofit applications. Overall cost of ownership decreases significantly due to reduced maintenance requirements, extended component life, lower energy consumption, and prevention of expensive equipment damage that magnetic slip clutch technology delivers consistently throughout its operational lifetime.

Tips And Tricks

Dec

Transmission Pain Points in Printing/Textile/Chemical Machinery: How Electromagnetic Clutches Improve Equipment Stability?

Struggling with transmission instability in printing, textile, or chemical machinery? TJ-A electromagnetic clutches eliminate slip, boost throughput 15–20%, and ensure asbestos-free safety. Discover how top global manufacturers achieve 99.8% reliability—request a spec sheet today.

Dec

High-Quality Web Guide Control Systems From a Leading Domestic Manufacturer With 20 Years of Expertise

Discover high-precision web guide control systems from a trusted domestic manufacturer with 20 years of R&D expertise. Reduce waste, boost efficiency, and ensure reliability. Request a quote today.

Apr

The Pain of Non-Standard Transmission in Special Working Conditions

Struggling with standard transmission failures in extreme temps, dust, or tight spaces? TianJi’s 20-year R&D delivers reliable custom clutches & brakes—engineered for your exact specs. Get a free technical consultation today.

Get Your Custom Quote

Tell us your requirements and get a tailored solution for your project.

Name

Mobile

Please include

Message

0/1000

magnetic slip clutch

clutch magnet

magnetic particle clutch

magnetic slip clutch

car compressor magnetic clutch

magnetic powder clutch suppliers

clutch magnetic

Contactless Torque Transmission Technology

The contactless torque transmission capability of the magnetic slip clutch represents a revolutionary advancement in power transfer technology that transforms how industrial systems manage rotational force. Unlike conventional clutches that depend on friction materials pressing against metal surfaces, the magnetic slip clutch achieves torque transfer through invisible magnetic fields bridging the gap between input and output components. This fundamental design difference eliminates the primary cause of wear in traditional clutches, where friction materials gradually degrade through constant contact, heat generation, and abrasive action. With no physical touching between rotating elements, the magnetic slip clutch maintains consistent performance characteristics throughout its operational life without the performance decay that plagues friction-dependent systems. The magnetic coupling operates smoothly across the entire speed range, from startup through maximum rpm, delivering uniform torque transmission without the jerking, grabbing, or chattering behaviors that can damage delicate products or compromise process quality. The air gap between magnetic components remains constant, preventing the accumulation of wear particles, lubricant breakdown products, or environmental contaminants that typically accelerate deterioration in mechanical clutches. This clean operation proves especially valuable in sensitive manufacturing environments where contamination control is essential, such as food production facilities, pharmaceutical plants, electronics assembly operations, and medical device manufacturing. The absence of friction heat means the magnetic slip clutch operates at substantially lower temperatures, reducing thermal stress on surrounding components and eliminating the need for elaborate cooling systems or heat dissipation structures. Temperature stability also ensures predictable performance across varying ambient conditions, maintaining precise torque control whether operating in cold warehouses or hot production areas. The magnetic fields provide instantaneous torque response with zero backlash, delivering immediate power transfer when engaged and instant disengagement when slip conditions occur, enabling faster machine reactions to changing load conditions. This responsive behavior enhances machine control precision and product quality in applications like printing presses, winding machinery, and precision positioning systems where accurate torque management directly influences output quality and consistency.

Intelligent Overload Protection System

The intelligent overload protection capability built into every magnetic slip clutch serves as an automatic guardian for your expensive machinery, providing split-second response to dangerous operating conditions that could otherwise cause catastrophic equipment failure. This protection system operates continuously without human intervention, monitoring torque levels through the inherent characteristics of magnetic coupling strength and responding immediately when forces exceed safe thresholds. The beauty of this approach lies in its simplicity and reliability, as the physical laws governing magnetic attraction provide consistent, repeatable protection without requiring electronic sensors, control systems, or external power sources that can fail or require calibration. When a jam occurs in your production line, perhaps from product buildup, foreign object intrusion, or mechanical malfunction downstream, the magnetic slip clutch begins slipping within milliseconds, preventing the transmission of destructive forces that would normally shear shafts, strip gears, or fracture expensive components. The slipping action absorbs the excess energy safely, allowing the drive motor to continue rotating while the jammed section remains stationary until operators can investigate and resolve the problem. This automatic response eliminates the violent shock loads that propagate through mechanical systems during sudden stops, protecting not just the immediate drive train but also upstream motors, reducers, and control systems from damaging current spikes and mechanical stress. The predetermined slip torque can be calibrated precisely during installation to match your specific application requirements, ensuring protection activates at exactly the right moment, neither too early causing nuisance trips nor too late allowing damage. Once the obstruction clears, normal operation resumes instantly without requiring manual reset procedures, maintenance interventions, or production delays, keeping your throughput high and operational costs low. The magnetic slip clutch provides this protection indefinitely without degradation, as the magnetic properties remain stable over time unlike friction materials that wear down and require periodic adjustment to maintain proper slip torque settings. Your maintenance budget benefits substantially because prevented failures avoid not only repair costs but also the cascade of expenses flowing from unplanned downtime, emergency parts procurement, overtime labor, missed delivery commitments, and customer satisfaction issues that equipment failures trigger throughout your organization.

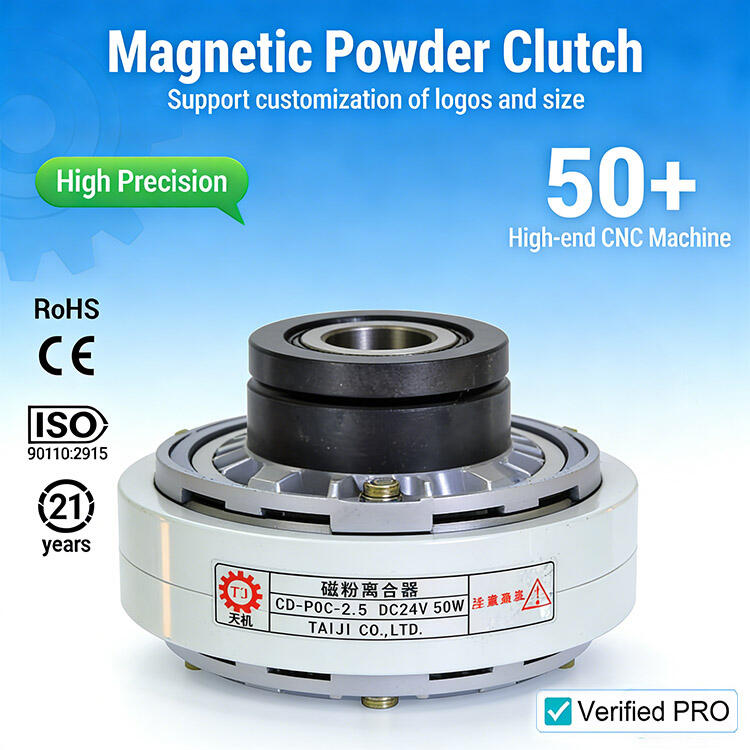

Precision Torque Control and Adjustability

The precision torque control capabilities inherent in magnetic slip clutch design provide manufacturers with unprecedented ability to manage power transmission characteristics according to exact application requirements, delivering consistency and repeatability that mechanical alternatives cannot match. The magnetic coupling strength, which determines the maximum torque before slipping occurs, can be precisely calibrated through adjustment of the air gap between magnetic components or by varying the magnetic field strength in electromagnetically adjustable models. This adjustability allows engineers to optimize protection levels for specific machinery, product characteristics, or process parameters, ensuring the clutch responds appropriately across diverse operating scenarios. The torque transmission curve remains linear and predictable throughout the operating range, providing consistent behavior that simplifies machine control and process optimization efforts. Unlike friction clutches where engagement characteristics change with temperature, humidity, contamination, and wear state, the magnetic slip clutch maintains stable performance parameters across environmental variations and throughout its service life. This stability proves invaluable in quality-critical applications where inconsistent torque delivery could produce defective products, such as film winding operations where tension control directly affects product appearance, or filling operations where torque variations might cause container damage or inconsistent fill levels. The repeatability of slip torque means your process engineers can establish reliable operating parameters knowing the protection system will behave identically during every operating cycle, enabling tighter process control windows and reduced safety margins that improve productivity. For applications involving multiple clutches operating synchronously, such as web handling systems with multiple tension zones, the consistent performance characteristics ensure balanced load distribution and coordinated protection across all drive points. The magnetic slip clutch also enables soft-start functionality, gradually building torque as magnetic fields stabilize, reducing mechanical shock during startup and extending equipment life. Advanced designs incorporating electromagnets provide dynamic torque adjustment capability, allowing real-time modification of slip torque through control system inputs, enabling adaptive protection that responds to changing product characteristics, process conditions, or operational modes without mechanical intervention. This programmability opens possibilities for intelligent manufacturing systems where protection parameters automatically optimize based on product type, line speed, or quality feedback, representing the future of adaptive machine control and Industry 4.0 integration in power transmission applications.
