Warner Power Off Electromagnetic Brake Micro 42 Volt High Precision Industrial

Product Description

Advatange:

Rapid Response The electromagnetic brake activates upon power-on and brakes immediately upon power-off, with a short response time (millisecond-level), making it ideal for high-frequency start-stop operations. High-Precision Control Adjusting braking torque via current enables precise position and speed control (e.g., in automated equipment and robots). Zero Friction Loss Non-contact braking eliminates mechanical wear, ensuring long service life and low maintenance costs. Strong Environmental Adaptability A sealed design provides dustproof and oil-resistant protection, suitable for harsh environments such as high temperatures, humidity, or dusty conditions (e.g., textile or mining machinery). Energy Efficiency Power is consumed only in the released state, while braking relies on springs or permanent magnets, resulting in low energy consumption. Enhanced Safety Automatic braking upon power loss prevents equipment sliding (e.g., emergency braking in elevators or cranes).

Warner Power Off Electromagnetic Brake Micro 42 Volt High Precision Industrial supplier

Warner Power Off Electromagnetic Brake Micro 42 Volt High Precision Industrial manufacture

Product Description

Tianji Manufacture power failure electromagnetic brake power off brake 12v 24v DC electromagnetic brake

Brief introduction of electric brake (Dry Single-plate Solenoid Brake):
Fast loss of electricity electromagnetic brake has the advantages of simple structure, low noise and reliable braking. An ideal performance element in industrial modernization. Loss of power brake with its excellent characteristics to meet the different USES of robots, motors and other different mechanical needs. Widely used in smart manufacturing and industrial robots, TJ-D ultra-thin over-excitation safety brake, ultra-thin design can not only save installation space, but also with over-excitation controller can play its superior characteristics of high torque and low power consumption, effectively reducing brake temperature.

It is compatible with overall general industrial machinery and the rational design offers good performance.

Specification

Installation precautions:

1. The surface of the friction piece and armature shall not be greasy and must be kept clean;

2. Installation can not tilt, to ensure verticality and levelness;
3. The installation bolts should be locked;
4. Voltage 24V power 60W

Considerations for Selection

1. Flange: can be directly installed on the motor, the installation method is simple, high IP level must be added Dust jacket, dust plate, need to add mounting flange or add groove on the end face of the motor
2. According to the actual demand to determine the torque range, power and size specifications of electromagnetic brake
parameters; The torque of power off brake should be greater than the torque required by the load of the motor.
3. Determine the type of electromagnetic brake, is power off type or power, is dry or wet type
4. Confirm motor power, torque size, installation method, application equipment and machine, send data, etc
5. The following table shows the parameters of each specification of power off brake

MODE			TJ-D-0.02	TJ-D-0.03	TJ-D-0.1	TJ-D-0.3	TJ-D-0.4	TJ-D-0.5
静摩擦扭矩 Static friction torque [kgm][NM]			0.2	0.32	1	3	4	4.5
动摩擦扭矩 Dynamic friction torque [kgm][NM]			0.18	0.3	0.85	2.8	3.75	4.5
功率 Power [DC24V]			24V	24V	24V	24V	24V	24V
径方向 Diameter direction	A	35	35	45	55	62	80
		B	29	29	38	47	54.5	72
		C	7	9.5	11	9	21	25
		D	16	17.5	21	22	30	32
		E	4 / 6	8	10	10	10	15 / 14
		L1	15	22.5	25	30	34	37.5
	L2	8	15	16	18	20	24
轴方向 Direction of principal axis	Y1	M2	M2.5	M3	M3	M3	M5
		Y2	5.5	6	6.5	6.5	6.5	8
		b	2	3	4	4	4	5
		t	1	1.4	1.8	1.8	1.8	2.3

Electromagnetic dry brake (power off brake) Structure, working principle and application

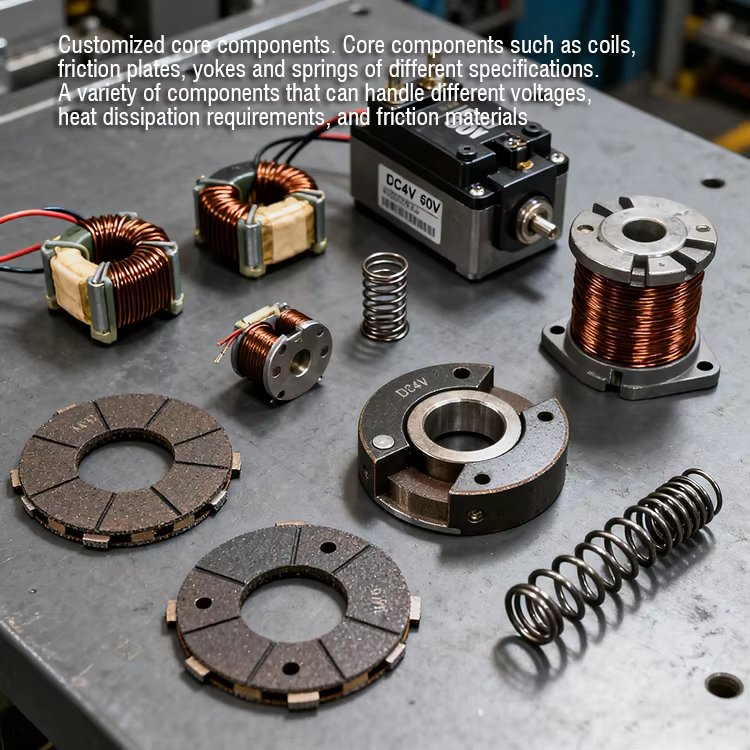

Electromagnetic power failure brake (power failure brake) for electric electromagnetic pull, power failure friction brake type brake, It consists of magnetic hoop, excitation coil, spring, brake disc, armature, spline sleeve, installation screw and so on.
Mainly with the Y series A new YEJ series electromagnetic brake three-phase asynchronous motor is generated. Widely used in metallurgy, construction, Chemical industry, food, stage, elevator, machine tool, packaging, ship and other machinery. Fast parking and accurate positioning, Braking, etc.

Why Choose Us

Eight reasons to choose us:

1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

Five Core strengths:
1. The first domestic independent R & D manufacturer and 14 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

DongGuan TaiJi Speed Reducer Clutch Company is a professional industrial transmission parts manufacturer, which headquarter in Taiwan. After many years efforts with all staffs , from general-purpse prodcuts to the new products development and now could provide different products to our clients.We always insist on the "Diligence,Honesty,Trust " in order to win constantly support from our customers and aslo establish "TianJi" Brand to the public with a good image.

Now our company has set up branch in DongGuan in 2005 mainly produce professional reducer , motor,industrial brake ,clutch and other transmission parts with extensive professional experience from TaiWan , combined with imports of machinery processing equipments.Our stringent quality requirements and constant innovation has become the industry leader and can produce products accordance with customer requirements.Customers and services: we rely on the recognition of customers,we are able to mobilize all our recources to win the trust from customers, we will continue to keep the products with higher performance and quality , faster market reaction speed , greater cost control , to make a success to our customers .We insist on establish organization ,process chart , regulation based on customer need.

CE cerificate for Clutch

FCC cerificate for motor reducer

Warner Power Off Electromagnetic Brake Micro 42 Volt High Precision Industrial details

ISO9001:2015 cerificate

FAQ

1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmisson parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.

4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.

5.What is the term of shipment ?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.

More concerned for our products , please do not hesitate to inquiry now!
