Steel Magnetic Powder Brake Clutch System Automated Torque Adjustment 24V OEM

Product Description

We are the factory in DongGuan professionally produce transmission parts for machines simple listed here for your reference :

1. magnetic powder clutch and brake series

2. tension controller series : manual tension controller,automatic tension controller.

3. air shaft and air adaptor series

4. safety chuck series

5. Edge positioning system series

6. air brake and clutch series

7. electromagnetic clutch and brake series

8. worm reducer and motor series

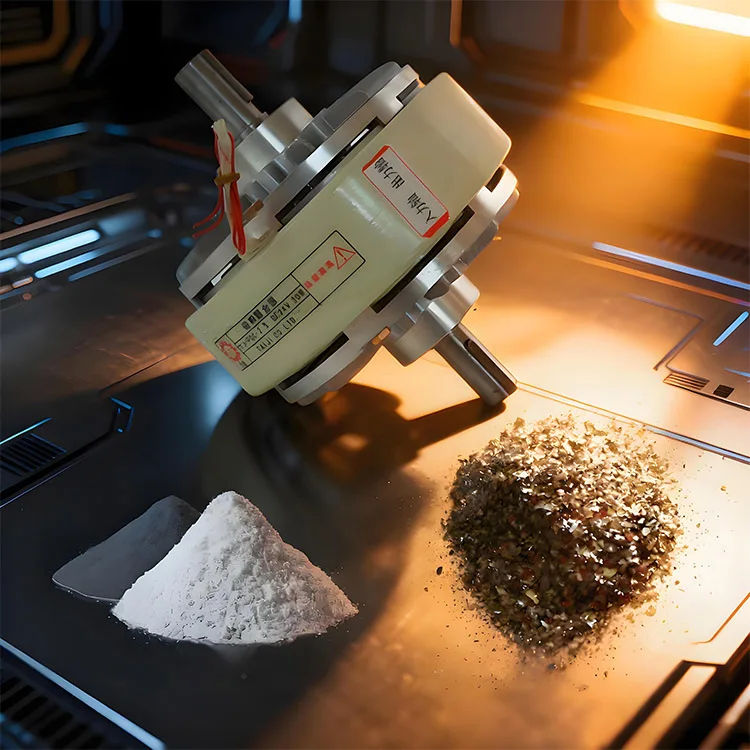

Steel Magnetic Powder Brake Clutch System Automated Torque Adjustment 24V OEM supplier

Characteristic of Bonded Magnetic Powder:

1. Easily produce complicated magnet shapes.
2. One time forming and multipolar orientation .
3. High precision of magnet dimension.
4. Good consistency of final products.
5.Good tenacity performance,not easy to broken or crack.
6. Better processing performance suitable for mass production.
7.High utilization ratio of raw material and lower producing cost.

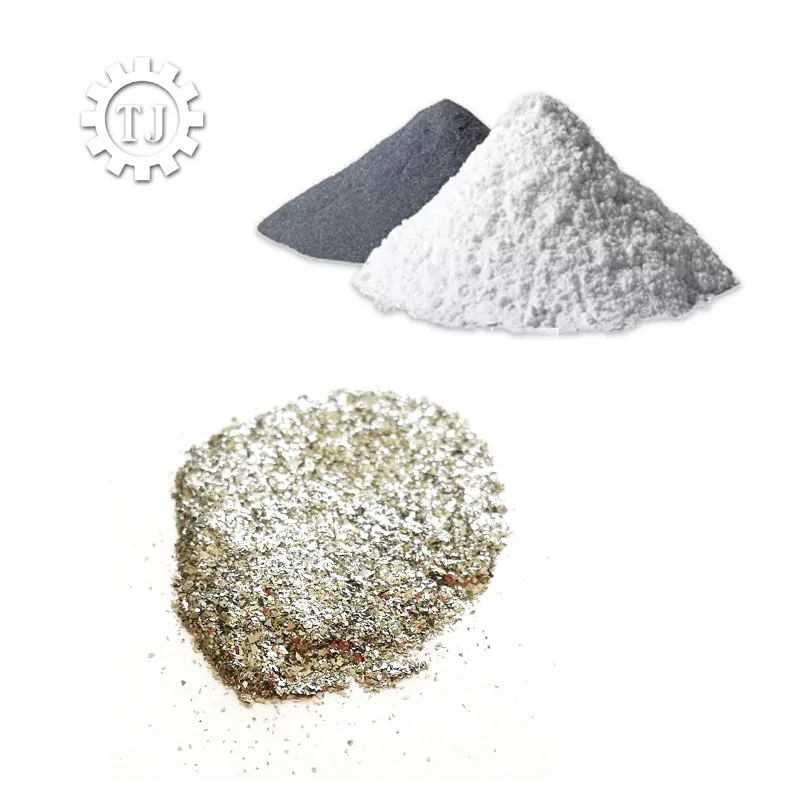

Magnetic powder for magnetic clutch 500g
Magnetic powder is specific for magnetic clutch, magnetic brakes (magnetic brakes), with high magnetic flux density, high Permeability, low remanence, low coercively, Curie point, high torque transmission and other characteristics. And has good heat resistance, wear resistance, thermal conductivity and chemical stability. At home and abroad can be a good magnetic clutch, magnetic brakes (magnetic brakes) match after use and keep it smooth without pitting, no damage to magnetic clutch, magnetic particle brakes, magnetic brakes. In the military, civil and other fields mainly applicable to a variety of high torque, high-slip magnetic powder clutch, magnetic brake and tension controller, various magnetic clutch brake plant and maintenance of magnetic clutch brakes.

Characteristic:

Main Ingredients	iron, cobalt, nickel
Shape	spherical powder
Bulk density (g/cm3)	4.3 ~ 4.6
Mobility (s / 50 g)	16 to 18
Curie Point(°C)	940
Coercivity (0e)	(0 e) 9 ~ 30
Magnetic induction (GS):	15900 (31400e)

Features:
1. It has a high magnetic flux density, high permeability, low remanent magnetization, low coercive force, Curie point, the transfer torque characteristics.
2. It has a good heat resistance, abrasion resistance, thermal conductivity, and chemical stability.
3. It is primarily applicable to the magnetic clutch, brake.

Applications:
It is suitable for magnetic powder clutch, brakes, uniaxial, biaxial, hollow shaft, etc.of slitting machine, laminating machine, coating machine, printing machinery, food machinery, bag making machinery and other equipment , can restore the tension, balance moment.magnetic particles uniformly, widely used in papermaking, printing and other

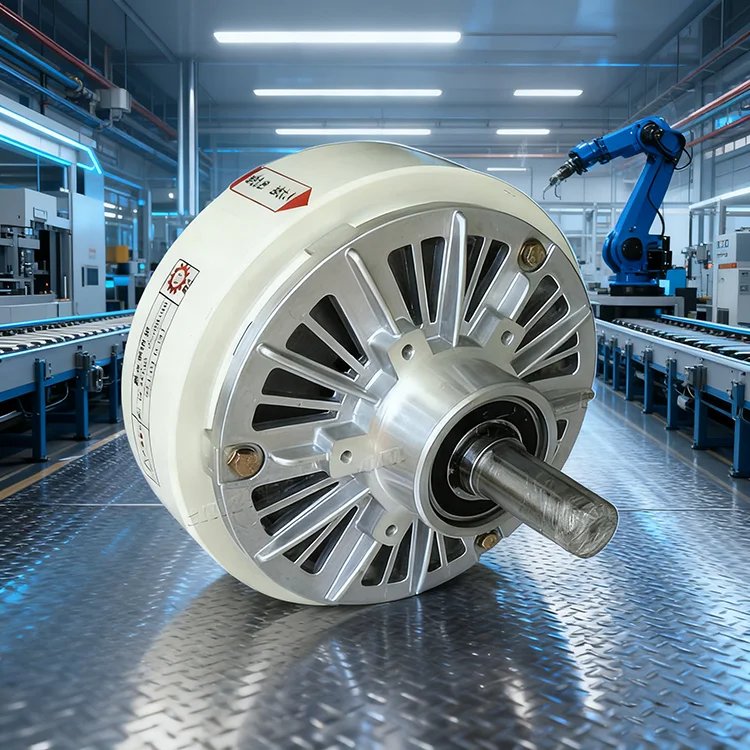

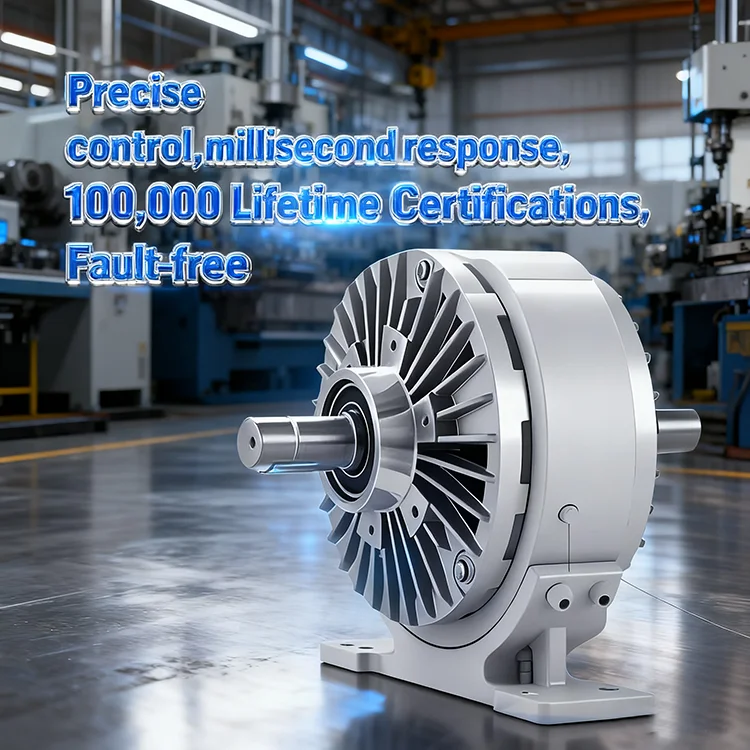

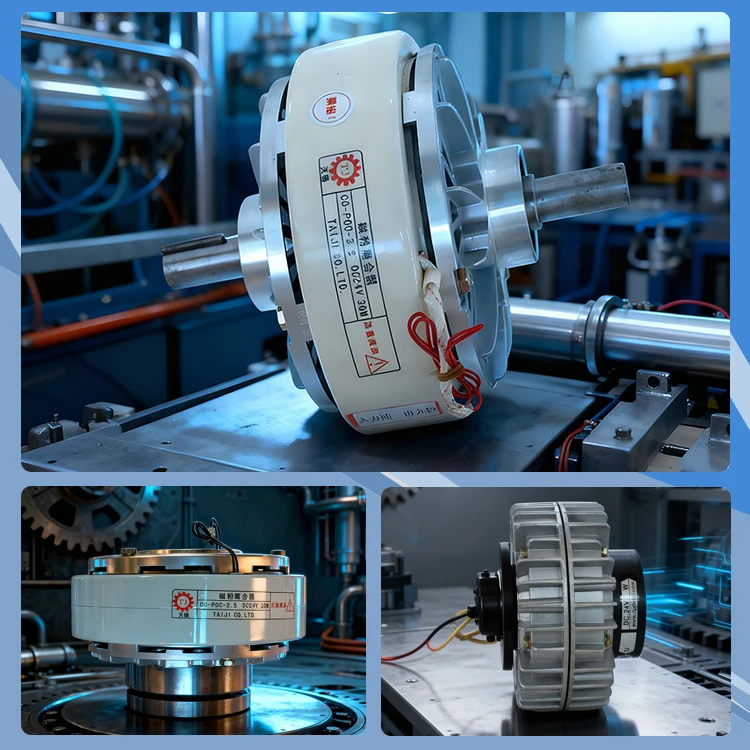

Dual Shaft Magnetic Powder Clutch

* Volatge: dc 24v
* Magnetic powder clutch/brake0.6KG-40KG stock supply
* Imported highly magnetized magnetic powder
* Imported wool felt and NSK bearings operate smoothly
* Coil 100% use enamelled copper wire
* Cast steel material

Steel Magnetic Powder Brake Clutch System Automated Torque Adjustment 24V OEM factory

advantages

1. Fast response. Dry design means instant reaction to commands.
2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.

3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.

advantages

4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.

5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.
6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Why Choose Us

Eight reasons to choose us:

1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

Five Core strengths:
1. The first domestic independent R & D manufacturer and 14 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.

FAQ

1. When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts. For air shafts, air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.

4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.

5. What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.

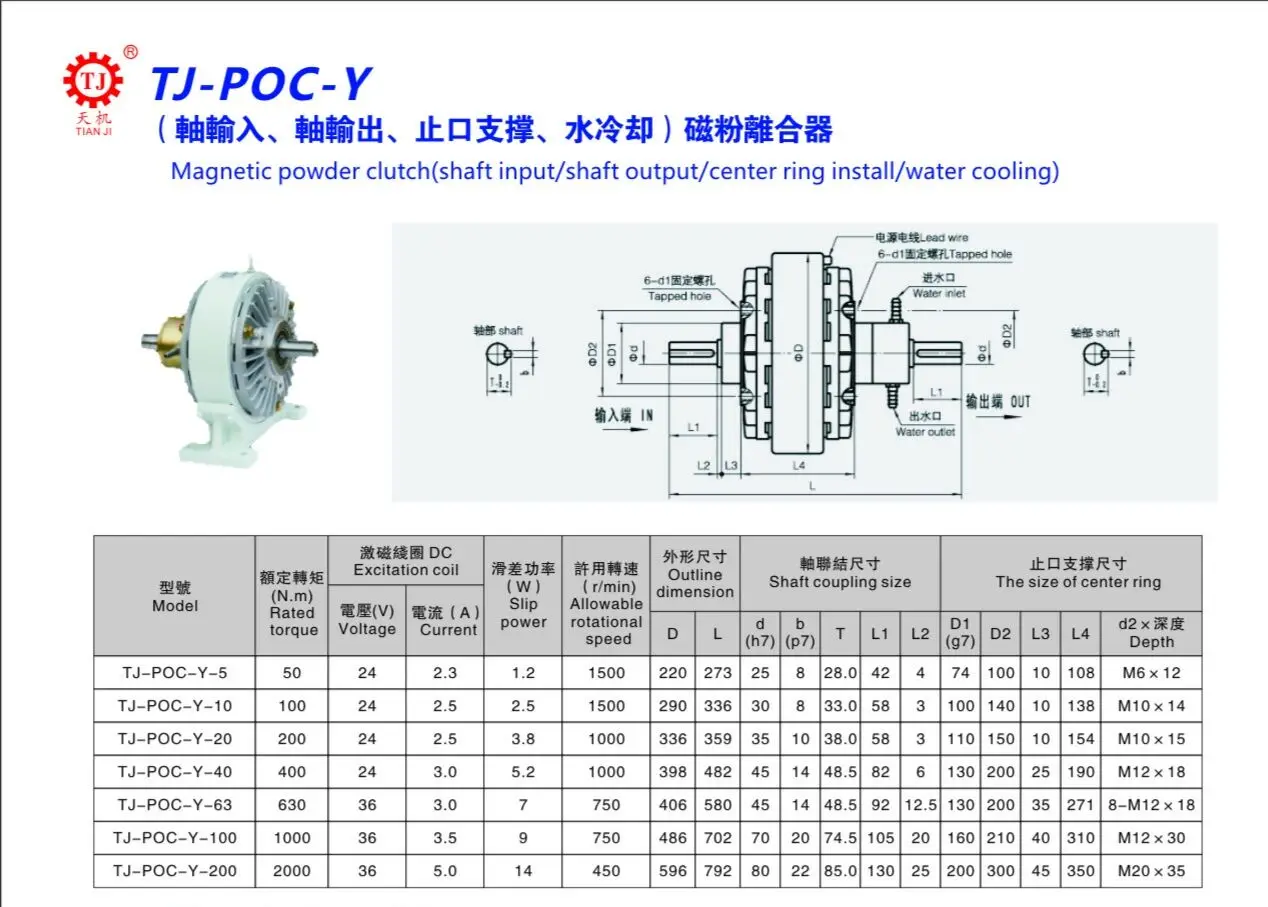

Model	Rated Torque (Nm)	Capacity DC24 (75°C)			Diameter of axle (mm)	Max Speed (r/min)	Powder Weight (g)
Model	Rated Torque (Nm)	(A)	(W)	(s)	Diameter of axle (mm)	Max Speed (r/min)	Powder Weight (g)
TJ-POC-1.5	12	0.94	22.5	0.1	15	1800	20
TJ-POC-2.5	25	1.24	30	0.12	20	1800	33
TJ-POC-5	50	2.15	51.5	0.13	25	1800	60
TJ-POC-10	100	2.4	57.6	0.25	30	1800	140
TJ-POC-20	200	2.7	64.8	0.37	35	1800	225
TJ-POC-40	400	3.5	84	0.4	45	1800	370
