Automatic tension control with microprocessor, high-speed A/D, anti-jamming, PID. Used in printing, packaging, papermaking, textiles, cable. Fully and semi-automatic models.

Get a Quote
Product Description

We are the factory in DongGuan professionally produce transmission parts for machines simple listed here for your reference :

1. magnetic powder clutch and brake series
2. tension controller series : manual tension controller,automatic tension controller.
3. air shaft and air adaptor series
4. safety chuck series
5. Edge positioning system series
6. air brake and clutch series
7. electromagnetic clutch and brake series
8. worm reducer and motor series
Automatic Tension Controller Sensor Auto Tianji for Printing Packaging Machinery supplier

Auto Tension Controller Specialty:

Our automatic tension control technology uses interactional many vanguard technologies, adopts the microprocessor, high speed 18A/D switch, antijamming self-recovery tech-nology, and PID non-over modulation algorithm, thus achieve the permanent tension control. Widely applies in printing, the packing, the papermaking, the spinning and also also the weaving, the line cable and so on. According to the difference of signal, it divides into completely automatic and Semiau-tomatic.
Automatic Tension Controller Sensor Auto Tianji for Printing Packaging Machinery manufacture
Automatic Tension Controller Sensor Auto Tianji for Printing Packaging Machinery supplier

The tension controller signal input may choose is comes from:

1,tension detector electric current either voltage output (mA or mV) completely automatic
2,encoder or close switch outputs signal(0-9V) ---Semisu-tomatic.

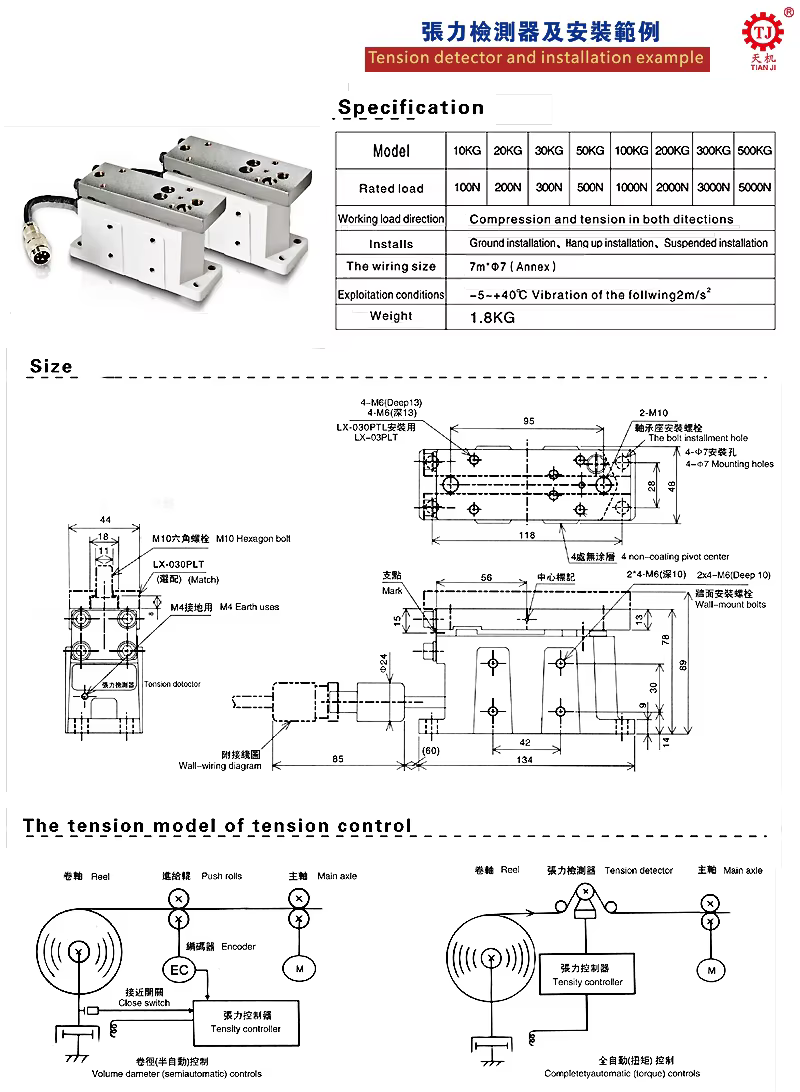

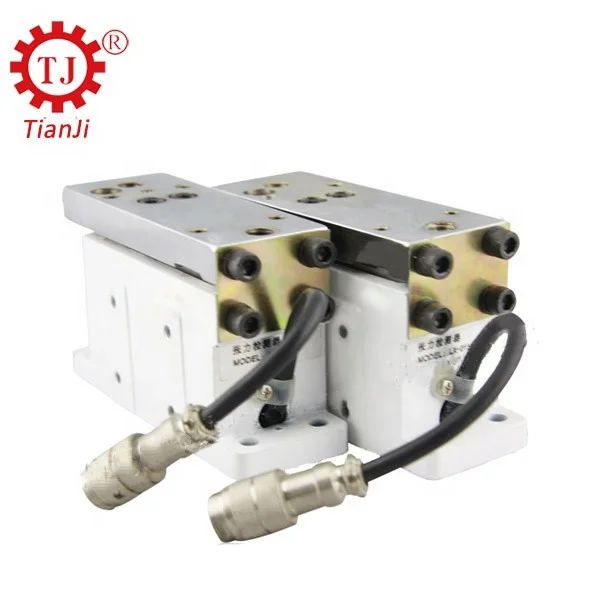

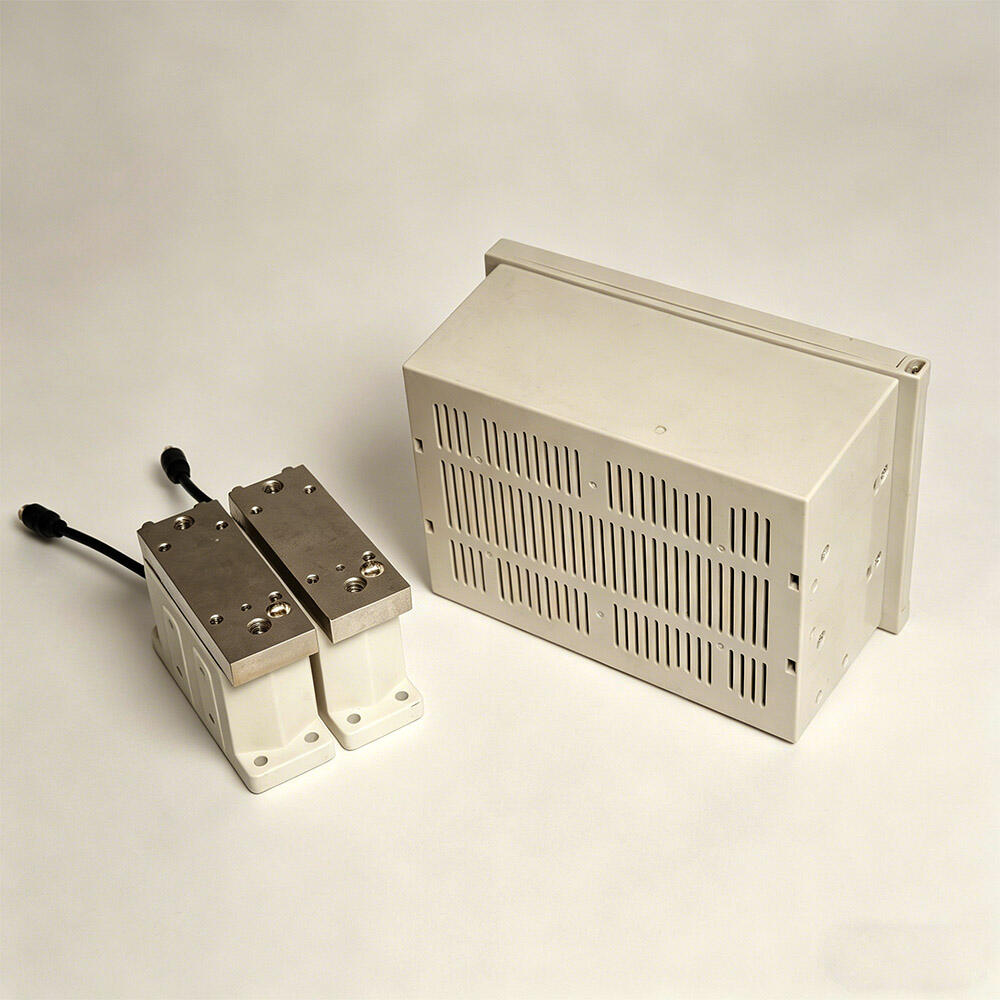

Tension Sensor (detector):
Model
50N
150N
300N
500N
1000N
2000N
Rated Load
50N
150N
300N
500N
1000N
2000N
Working load direction
Compression and tension in both directions
Installation
Ground installation
Hang up installation
Suspended installation
Exploitation conditions
-5~+40°C Vibration of the following 2m/s2
Weight
1.8KG
Automatic Tension Controller Sensor Auto Tianji for Printing Packaging Machinery details

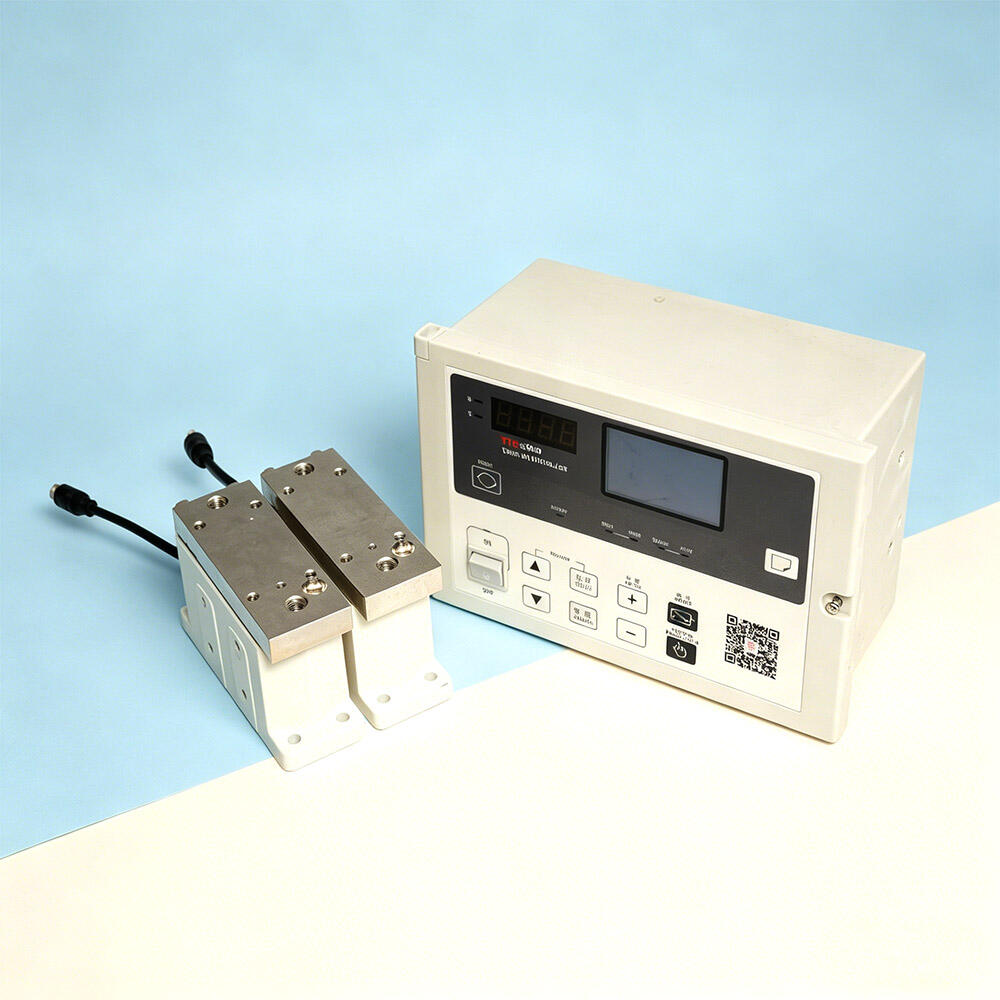

Auto Tension Controller with Tension Sensor :

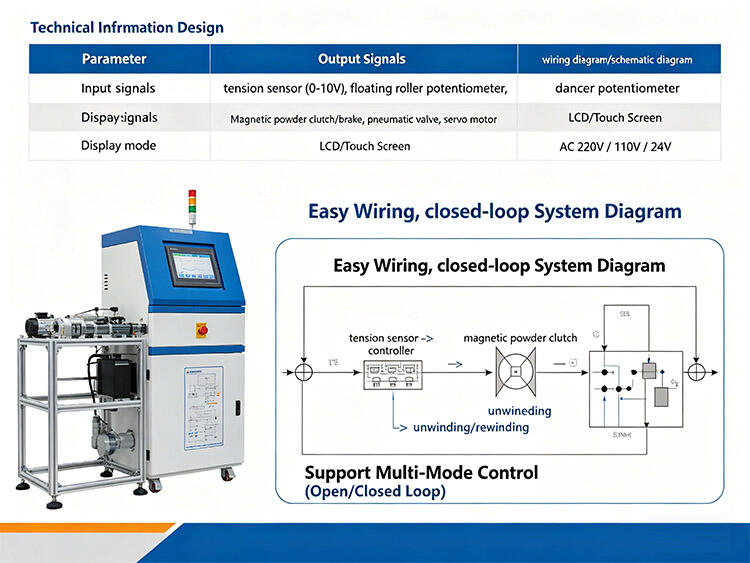

A complete set of schematic of tension control system
Automatic Tension Controller Sensor Auto Tianji for Printing Packaging Machinery factory
Automatic Tension Controller Sensor Auto Tianji for Printing Packaging Machinery factory

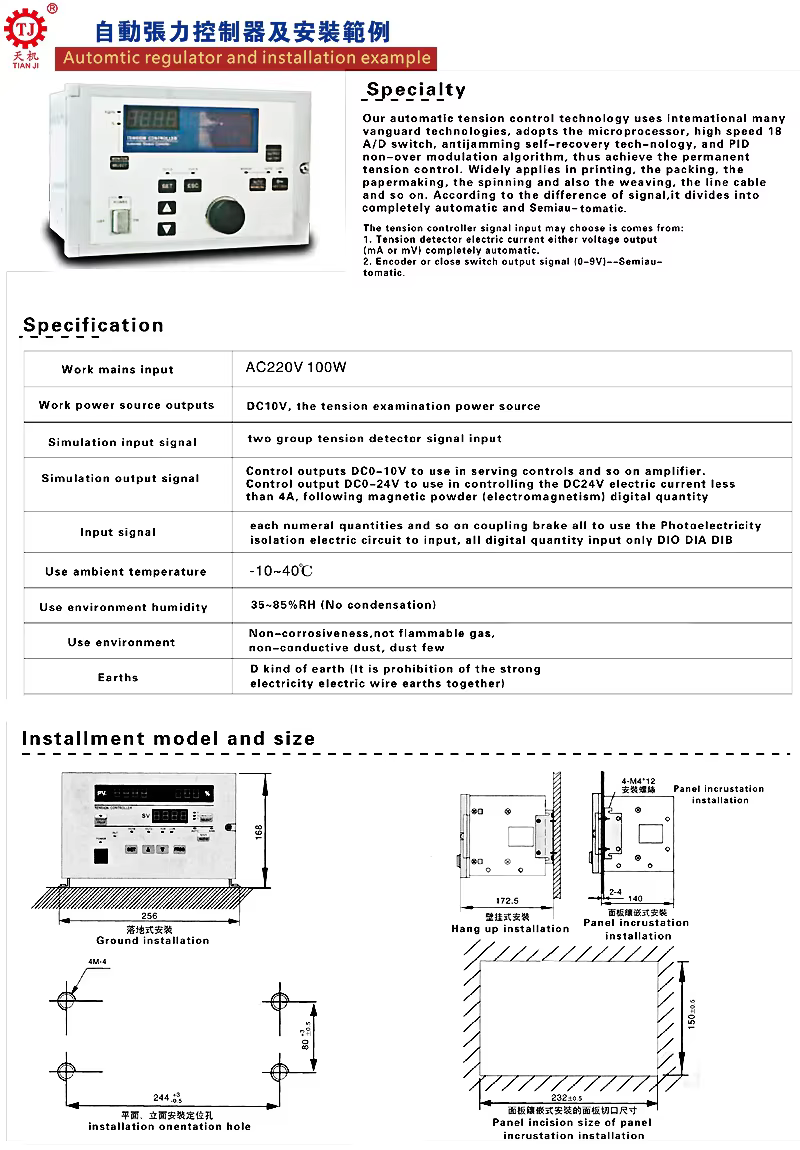

Specification
Auto Tension Controller Parameter:
Work mains input
AC220V 100W
Work power source output
DC10V,the tension examination power source
Simulation input signal
Two group tension detector signal input
Simulation output signal
Control output DC0-10V to use in serving controls and so on amplifier.
Control output DC0-24V to use in controlling the DC24Velectric current less than 4A,
following magnetic powder (electromagnetism) digital quantity.
Input signal
Each numeral quantities and so on coupling brake all to use the Photoelectrictiy isolation electric circuit to input, all digital
quantity input only DIO DIA DIB.
Use ambient temperature
-10~40degree
Use environment humidity
35~85% RH( No condensation)
Use environment
Non-corrosiveness, not flammable gas,non-conductive dust, dust few
Earths
D kind of earth (It is prohibition of the strong electricity electric wire earths together)

product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-0

product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-1

product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-2

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-3
Company Profile
DongGuan TaiJi Speed Reducer Clutch Company is a professional industrial transmission parts manufacturer, which headquarter in Taiwan. After many years efforts with all staffs , from general-purpse prodcuts to the new products development and now could provide different products to our clients.We always insist on the "Diligence,Honesty,Trust " in order to win constantly support from our customers and aslo establish "TianJi" Brand to the public with a good image.
Now our company has set up branch in DongGuan in 2005 mainly produce professional reducer , motor,industrial brake ,clutch and other transmission parts with extensive professional experience from TaiWan , combined with imports of machinery processing equipments.Our stringent quality requirements and constant innovation has become the industry leader and can produce products accordance with customer requirements.
Customers and services: we rely on the recognition of customers,we are able to mobilize all our recources to win the trust from customers, we will continue to keep the products with higher performance and quality , faster market reaction speed , greater cost control , to make a success to our customers .We insist on establish organization ,process chart , regulation based on customer need.
product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-4 product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-5 product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-6
FCC certificate for motor
ISO9001:2015 certificate
CE certificate for clutch

product tianji high quality auto tension controller automatic tension sensor for printing machines packaging machinery parts-7

FAQ

1. When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts. For air shafts, air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.

4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.

5. What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
