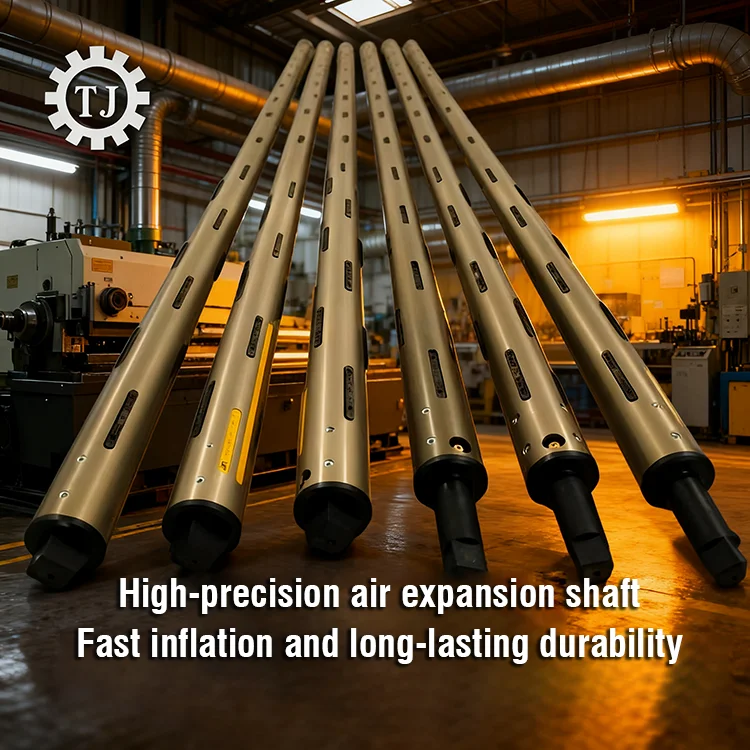

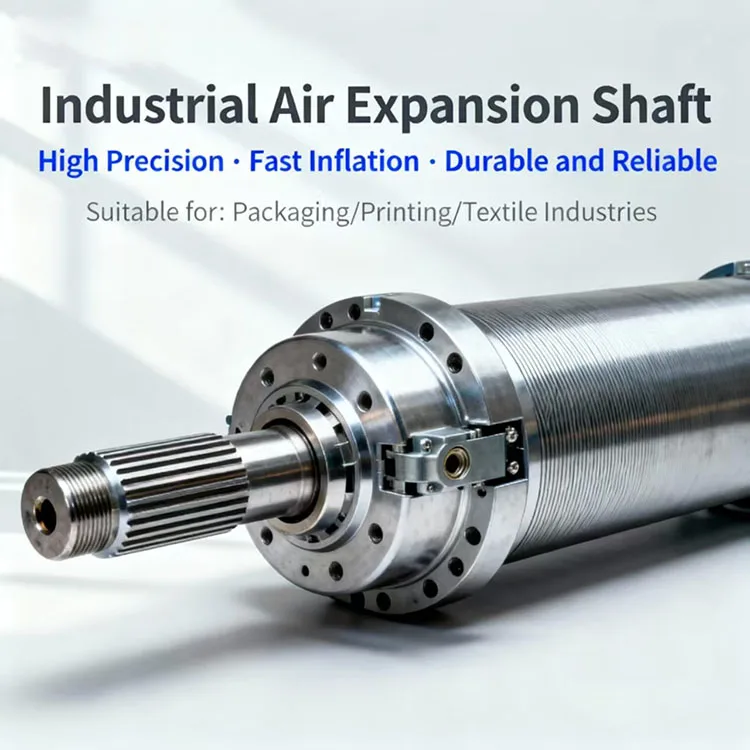

Lightweight aluminum air shaft for standard applications. Pneumatic flat hose system expands clamping bars. Gentle on cores, allows multiple winding, easy roll changes.

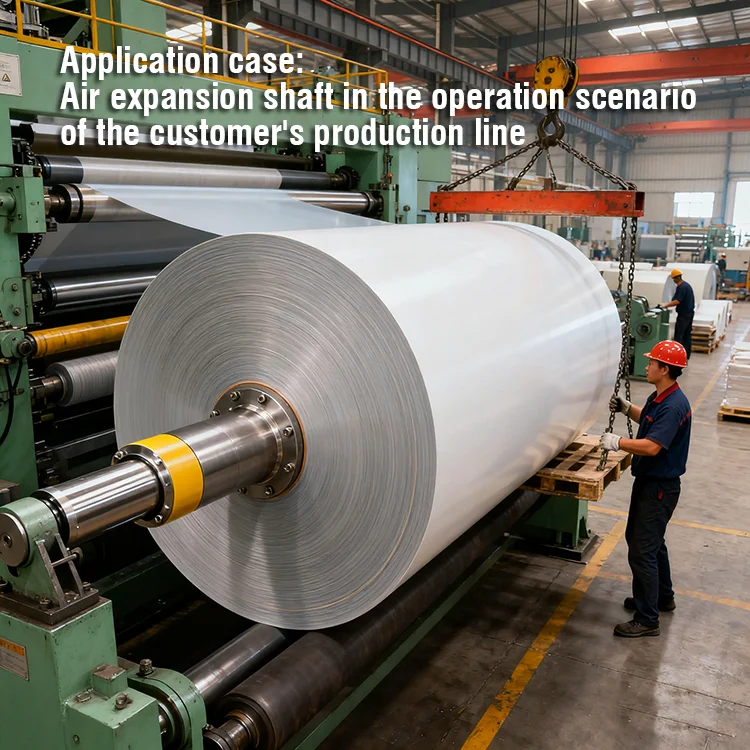

What can an air shaft be used for? |
What can an air shaft be used for? |
|
Cutting machine; |
Printing machine; |
|
Slitting machine; |
Coating machine; |
|
Laminating machine; |
Bag making machine; |
|
so on... |
||
Diameter |
Unaerated diameter (ømm) |
Inflated diameter(ømm) |
Applicable volume tube inner diameter(ømm) |
1″ |
24.8 |
24.8-28 |
25-26 |
1.5″ |
37 |
40-42 |
38-38.5 |
2″ |
49 |
52-54 |
50-51 |
3″ |
74-75 |
80-82 |
75.5-78 |
4″ |
99-100 |
104-106 |
101-102 |
5″ |
125 |
130-133 |
126-128 |
6″ |
150 |
154-156 |
151-153 |
8″ |
200 |
206-264 |
202-204 |
10″ |
250 |
260-264 |
252-256 |
12″ |
300 |
308-310 |
302-305 |

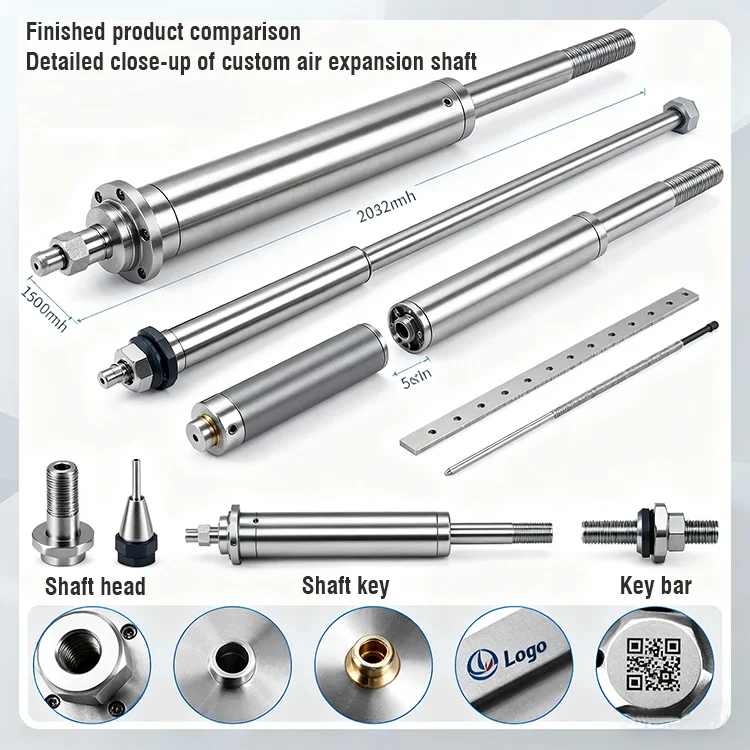

01 |
body |
09 |
clamping piece – top part |
02 |
journal |
10 |
threaded pin DIN 914 – M8 x 20 |
03 |
journal valveside |
11 |
threaded pin DIN 913 – M6 x 8 |
04 |
clamping bar |
12 |
locking screw M10x1 |
05 |
retaining spring |
13 |
o-ring |
06 |
air distributor |
14 |
flat tube |
07 |
clamping piece – bottom part |
15 |
protection tape |
08 |
clamping piece – bottom part valveside |
16 |
valve |
01 |
body |
08 |
clamping ring |
02 |
rubber tube |
09 |
nut |
03 |
support tube |
10 |
o-ring |
04 |
expansion element |
11 |
clamping piston |
05 |
valve |
12 |
flat head screw DIN 7991 – M10 x 16 |
06 |
journal |
13 |
flat head screw DIN 7991 – M10 x 12 |
07 |
journal / air inlet |
14 |
clamping piston / air passage |
DongGuan TianJi Speed Reducer Clutch Company is a professional industrial transmission parts manufacturer, which headquarter in Taiwan. After many years efforts with all staffs , from general-purpose products to the new products development and now could provide different products to our clients.We always insist on the "Diligence,Honesty,Trust " in order to win constantly support from our customers and also establish "TianJi" Brand to the public with a good image.Now our company has set up branch in DongGuan in 2005 mainly produce professional reducer , motor,industrial brake ,clutch and other transmission parts with extensive professional experience from TaiWan , combined with imports of machinery processing equipments.Our stringent quality requirements and constant innovation has become the industry leader and can produce products accordance with customer requirements.Customers and services: we rely on the recognition of customers,we are able to mobilize all our resources to win the trust from customers, we will continue to keep the products with higher performance and quality , faster market reaction speed , greater cost control , to make a success to our customers .We insist on establish organization ,process chart , regulation based on customer need.
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts. For air shafts, air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.
5. What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
