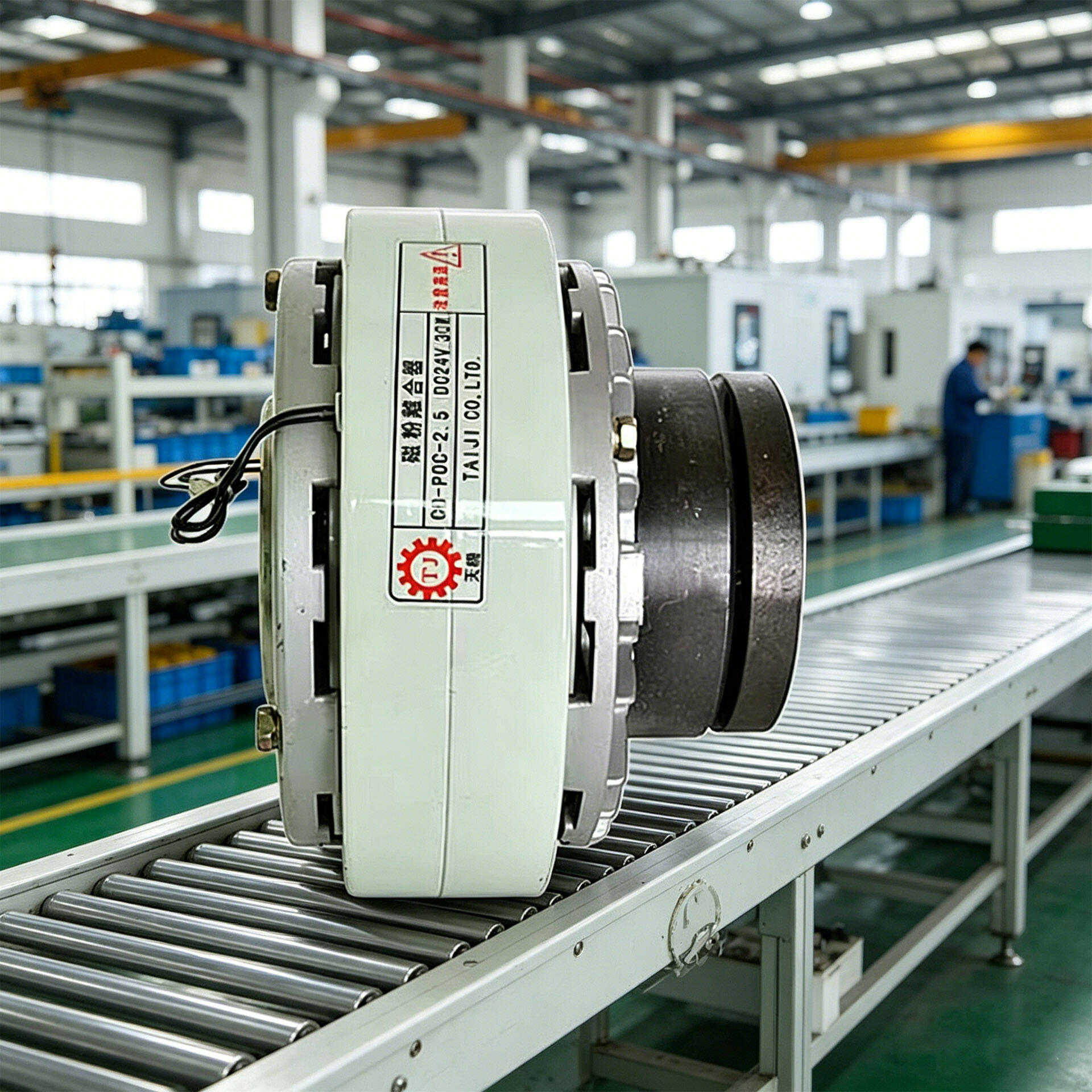

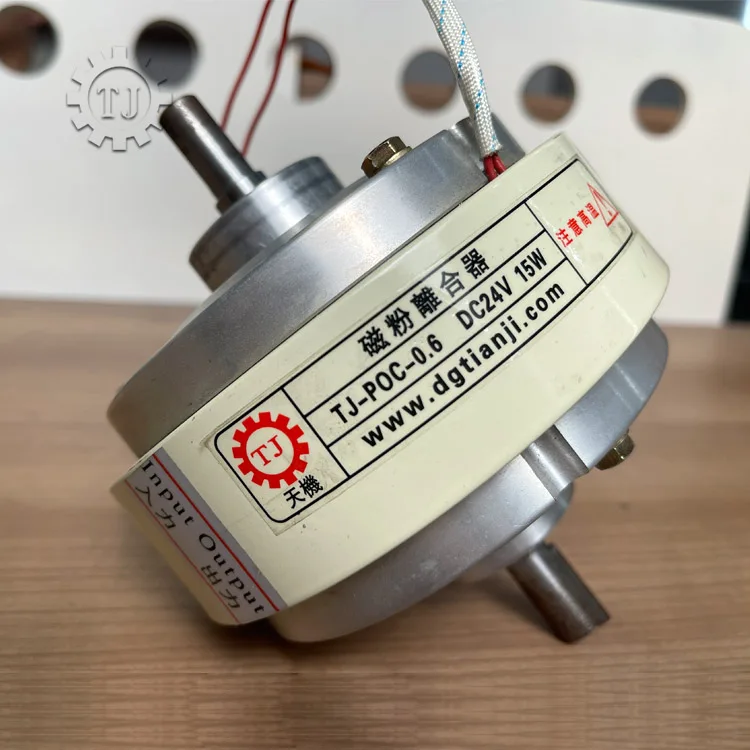

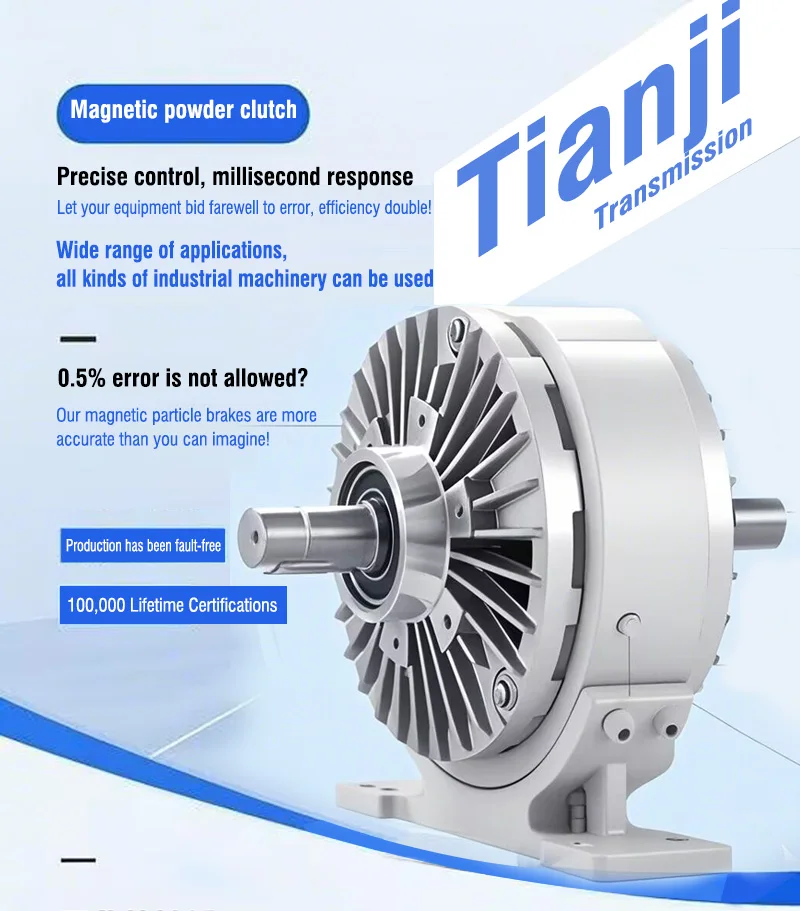

Dual Shaft Magnetic Powder Clutch
|
|
|
Volatge:
|
DC 24v
|
|
Magnetic powder clutch/brake weight
|
0.6KG-40KG
|
|
Imported highly magnetized magnetic powder
|
|
|
Imported wool felt and NSK bearings operate smoothly
|
|
|
Coil 100% use enamelled copper wire
|
|
|
Cast steel material
|
|
Application of magnetic powder clutch | |||
printing machinery |
paper industry machinery |
bag-making machinery |
paper-making machinery |
wire and cable machinery |
coil machinery |
wire winding machines |
strapping bag machinery |
textile machinery |
weaving-dimensional machinery |
woodworking machinery |
steel extruders CNC lathes
|
|

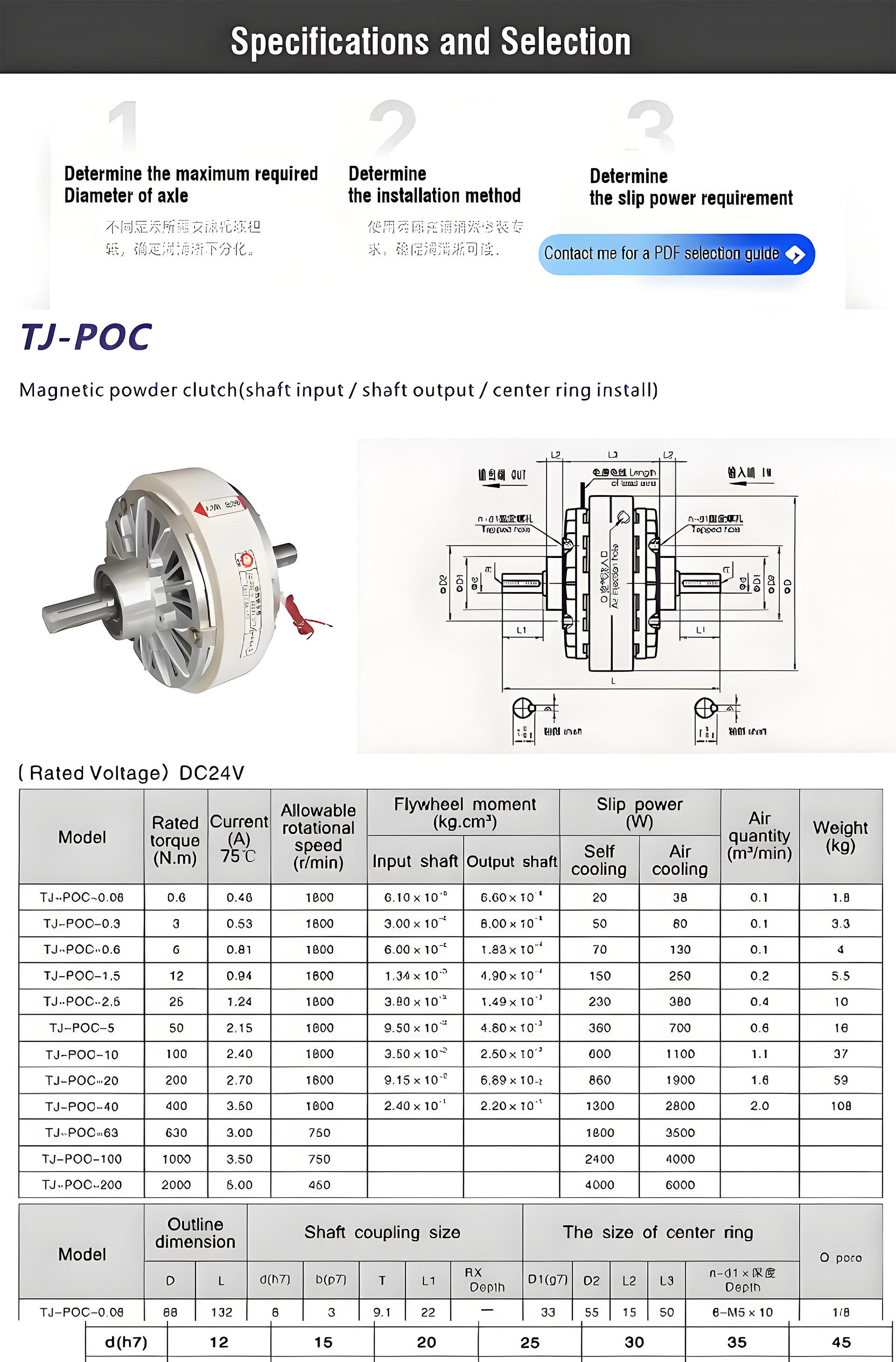

Model
|
Rated Torque (Nm)
|
Capacity DC24 (75°C)
|
Diameter of axle (mm)
|
Max Speed (r/min)
|
Powder Weight (g)
|
||
|
(A)
|
(W)
|
(s)
|
|||||
|
TJ-POC-1.5
|
12
|
0.94
|
22.5
|
0.1
|
15
|
1800
|
20
|
|
TJ-POC-2.5
|
25
|
1.24
|
30
|
0.12
|
20
|
1800
|
33
|
|
TJ-POC-5
|
50
|
2.15
|
51.5
|
0.13
|
25
|
1800
|
60
|
|
TJ-POC-10
|
100
|
2.4
|
57.6
|
0.25
|
30
|
1800
|
140
|
|
TJ-POC-20
|
200
|
2.7
|
64.8
|
0.37
|
35
|
1800
|
225
|
|
TJ-POC-40
|
400
|
3.5
|
84
|
0.4
|
45
|
1800
|
370
|
|
Rated torque
|
0.6 ~ 2000 N.m
|
|
Current
|
0.9 ~ 5 A
|
|
Voltage
|
24 ~ 36 V
|
|
Allowable rotational speed
|
1500 ~ 450 r/min
|
|
Slip power of self cooling
|
70 ~ 4000 W
|
|
Slip power of air cooling
|
130 ~ 6000 W
|
|
Outline dimension(H)
|
150 ~ 619
|
|
Outline dimension(L)
|
146 ~ 733
|
|
Product Keywords
|
magnetic powder clutch brake zkb-10bn,magnetic powder clutch zkb-10bn,micro magnetic powder clutch zkb-10bn
|
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts. For air shafts, air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.
5. What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
