Air Shaft Adapter Rigid Steel Core Flexible 3 6 Inch Printing Machine Parts

Product Description

We are the factory in DongGuan professionally produce transmission parts for machines simple listed here for your reference :

1. magnetic powder clutch and brake series
2. tension controller series : manual tension controller,automatic tension controller.
3. air shaft and air adaptor series
4. safety chuck series
5. Edge positioning system series
6. air brakeand clutch series
7. electromagnetic clutch and brake series
8. worm reducer and motor series

Product Description

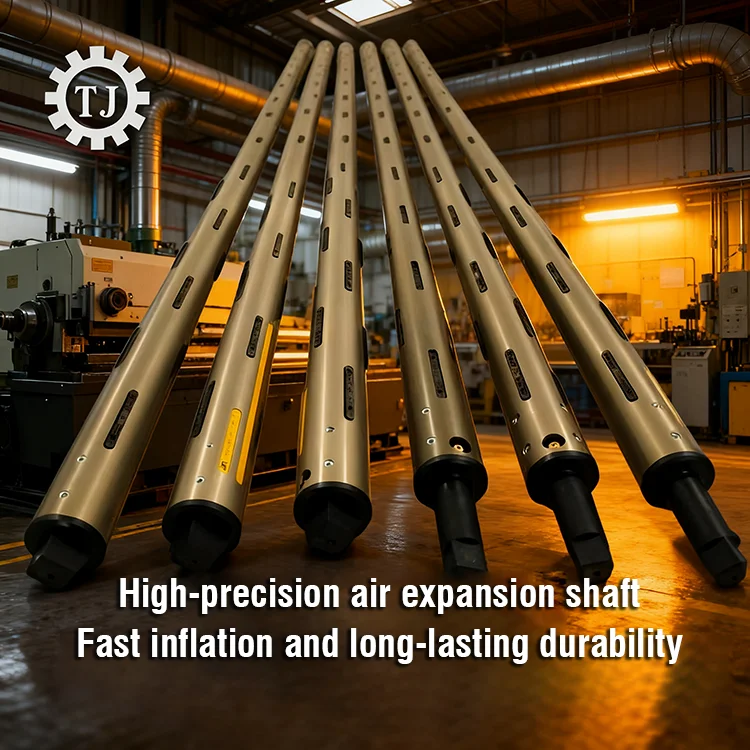

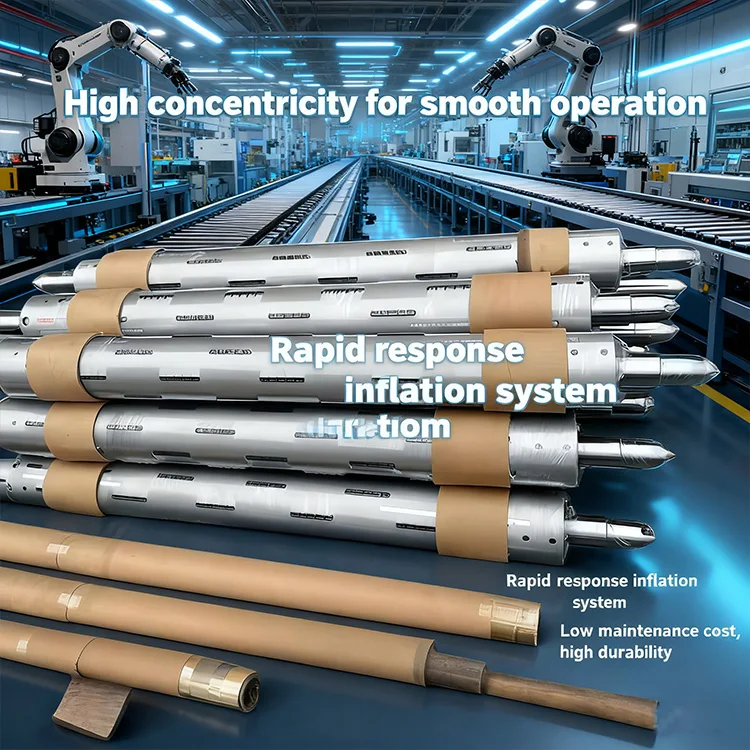

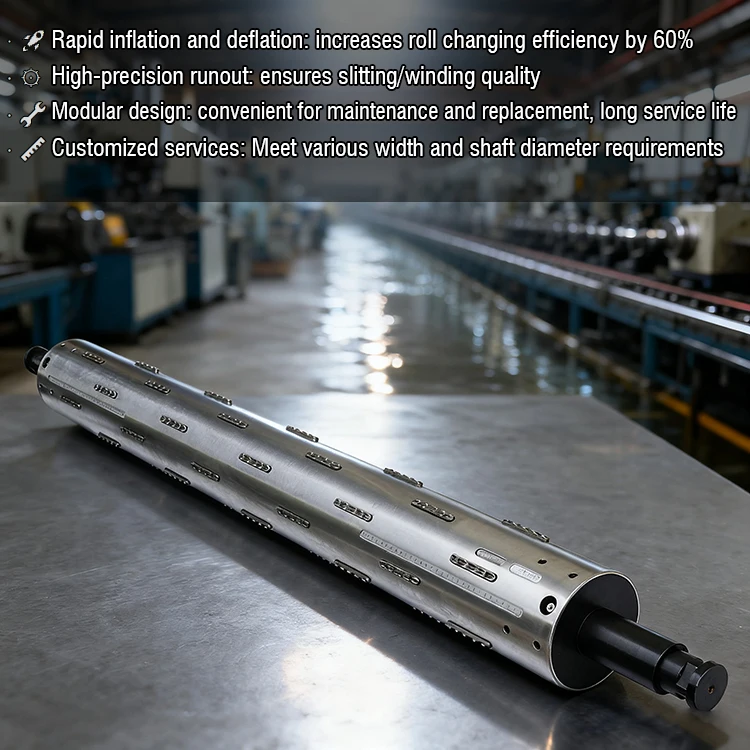

Air shafts from Tianji

With more than 17 years of experience in all areas of modern winding technology, we are the first point of contact in china for pneumatic and pneumo-mechanical air shafts. We offer expansion shafts for every application, friction shafts or adapters. standard solutions or manufactured on customers request.

Air Shaft Adapter Rigid Steel Core Flexible 3 6 Inch Printing Machine Parts details

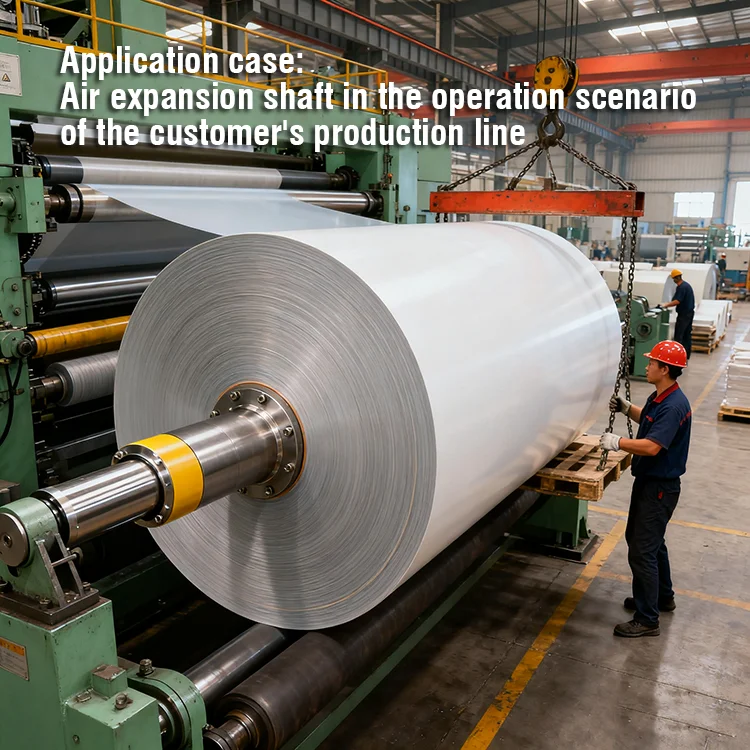

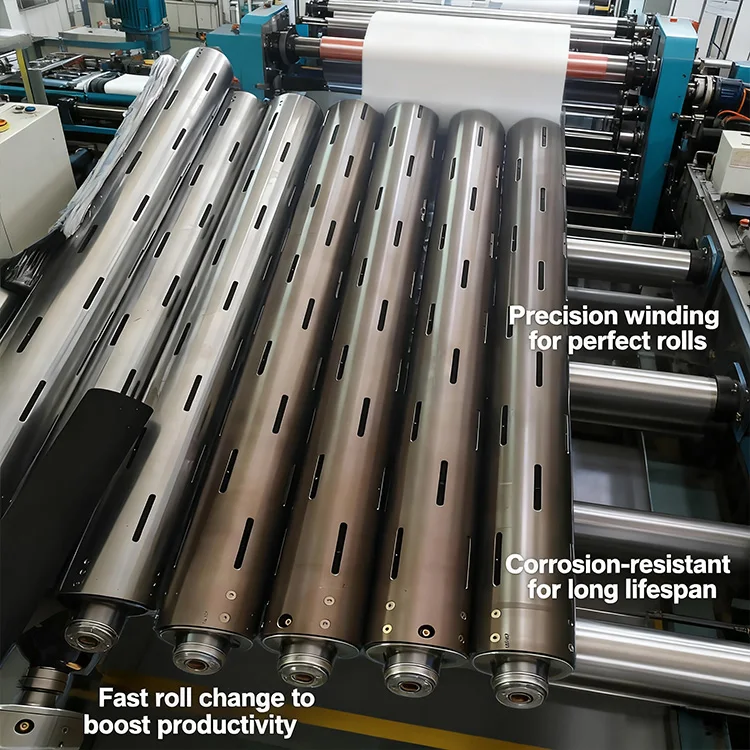

What can an air shaft be used for?
Cutting machine;	Printing machine;
Slitting machine;	Coating machine;
Laminating machine;	Bag making machine;
so on...	What can an air shaft be used for?

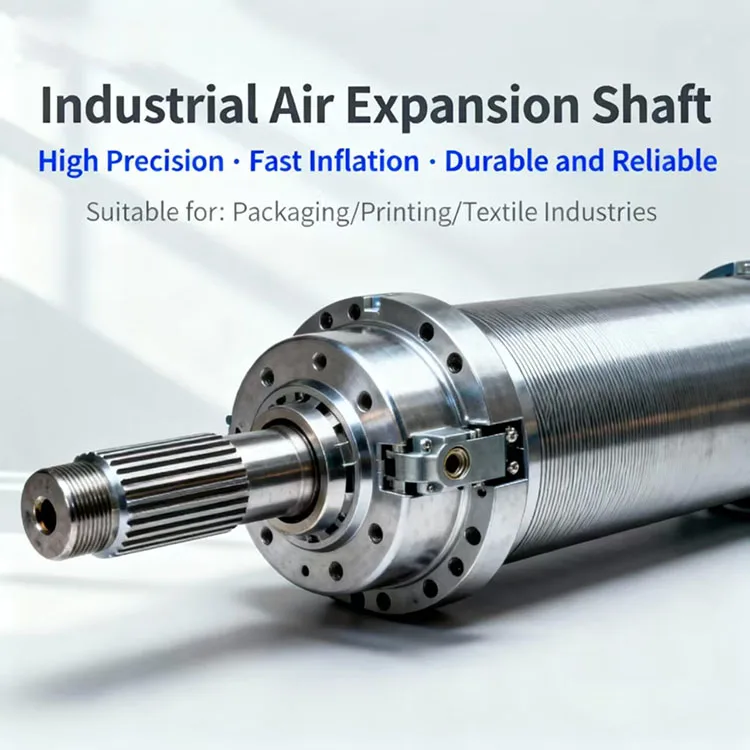

3. Specifications of air shaft

Type:Key type air shaft(steel-made or aluminum made), Lath type air shaft,Differential air shaft
Material: No.45 steel/ Aluminum
Length: 0.2m-3.8m

Diameter	Unaerated diameter (ømm)	Inflated diameter(ømm)	Applicable volume tube inner diameter(ømm)
1"	24.8	24.8-28	25-26
1.5"	37	40-42	38-38.5
2"	49	52-54	50-51
3"	74-75	80-82	75.5-78
4"	99-100	104-106	101-102
5"	125	130-133	126-128
6"	150	154-156	151-153
8"	200	206-264	202-204
10"	250	260-264	252-256
12"	300	308-310	302-305

Air Shaft Adapter Rigid Steel Core Flexible 3 6 Inch Printing Machine Parts manufacture

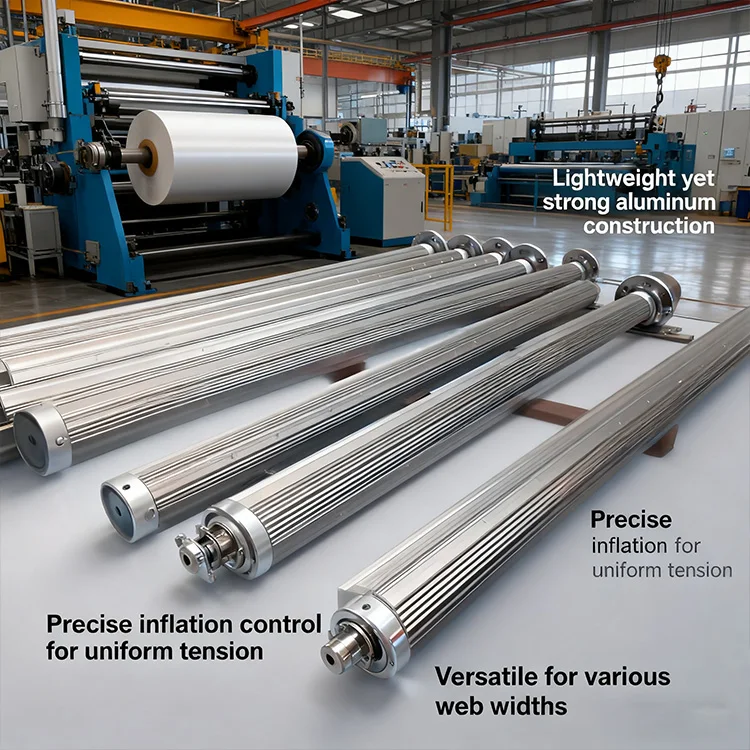

Lightweight aluminium air shafts

* Winding and unwinding of material coils like paper or film

* Clamping bars made of aluminium, rubber-steel, solid rubber or Plastic

* Body made of light aluminium profile

* the shafts are designed for frequent roll changes

* the bearing journals designed on customers requst or as a cost-effective standard solutions

* standard diameters are 70 / 70-76.2 / 76 /100 / 125 / 150 / 200 mm

* the continuous clamping bars are very protective to the cores

The lightweight aluminium air shafts is the right choice for most standard applications. It is designed for medium web tension and medium coil weight. Due to the aluminium profile design, the air shaft is extremely light and relieves the machine operator during frequent roll changes. The pneumatic clamping shaft expands by a flat hose system. The continuous clamping bars are very protective to the cores and allow even a winding of multiple cores.

Spare Parts

01	body	09	clamping piece - top part
02	journal	10	threaded pin DIN 914 - M8 x 20
03	journal valveside	11	threaded pin DIN 913 - M6 x 8
04	clamping bar	12	locking screw M10x1
05	retaining spring	13	o-ring
06	air distributor	14	flat tube
07	clamping piece - bottom part	15	protection tape
08	clamping piece - bottom part valveside	16	valve

Air Shaft Adapter Rigid Steel Core Flexible 3 6 Inch Printing Machine Parts supplier

Standard air shafts

* 3" (76mm) & 6" (150mm) aluminium profile

* 300mm - 3,000mm length

* Hardened standard journals

* selectable clamping bars

* max. 1000kg (3") 1,500kg (6") with stable load

In order to meet the demands of our customers for better delivery times, we have common standard journals available from stock which allows us to reduce the delivery time considerably.

High performance air shafts

* Winding and unwinding of material coils like paper or film
* Expansion elements made of aluminium, rubber-steel and solid rubber
* Winding and unwinding of material coils like paper or film
* the air shafts is designed for high loads
* bearing journals are fully customizable
* diameter: 50/70/76.2/100/120 / 150-152.4/200 - 203.2 mm
* with easily exchangeable, central tube

Due to its construction and the central tube system, this winding shaft is the most customisable. Depending on its design, it can withstand very high loads and is therefore a real high-performance air shaft. Even a carbon fibre body is possible in case a very low dead weight is required. The shafts expansion elements are expanding by a central rubber hose.

01	body	08	clamping ring
02	rubber tube	09	nut
03	support tube	10	o-ring
04	expansion element	11	clamping piston
05	valve	12	flat head screw DIN 7991 - M10 x 16
06	journal	13	flat head screw DIN 7991 - M10 x 12
07	journal / air inlet	14	clamping piston / air passage

Pneumo-mechanical precision air shafts

* Winding and unwinding of material coils like paper or film
* Winding and unwinding of material coils like paper or film
* Body made of aluminium, steel or carbon fibre
* dynamically balanced on request
* ideal for very high speeds
* Diameter: 70 / 70-76.2 / 76 / 100 / 120 / 127 / 150-152.4, 200-203.2 mm

The expansion of the PMS series is characterised by the variably adjustable clamping sets, with which sleeve tolerances can be perfectly compensated. In addition, there is the possibility of dynamic balancing.

pneumatic air shafts with shells

* Winding and unwinding of material coils like paper or film
* Sleeve-protecting due to maximum contact surface
* Core less winding possible
* Shafts are pneumatically expanding

* Shells without screw connection
* Diameter: 76.2 /152,4
* Shaft body made of aluminium or steel

High performance air shafts

* Winding and unwinding of material coils like paper or film
* Expansion elements made of aluminium, rubber-steel and solid rubber
* Winding and unwinding of material coils like paper or film
* the air shafts is designed for high loads
* bearing journals are fully customisable
* diameter: 50/70/76.2/100/120 / 150-152.4/200 – 203.2 mm
* with easily exchangeable, central tube

01	body	08	clamping ring
02	rubber tube	09	nut
03	support tube	10	o-ring
04	expansion element	11	clamping piston
05	valve	12	flat head screw DIN 7991 – M10 x 16
06	journal	13	flat head screw DIN 7991 – M10 x 12
07	journal / air inlet	14	clamping piston / air passage

Pneumo-mechanical precision air shafts

* Winding and unwinding of material coils like paper or film
* Winding and unwinding of material coils like paper or film
* Body made of aluminium, steel or carbon fibre
* dynamically balanced on request
* ideal for very high speeds
* Diameter: 70 / 70 – 76.2 / 76 / 100 / 120 / 127 / 150 – 152.4, 200 – 203.2 mm

pneumatic air shafts with shells

* Winding and unwinding of material coils like paper or film
* Sleeve-protecting due to maximum contact surface
* Core less winding possible
* Shafts are pneumatically expanding

* Shells without screw connection
* Diameter: 76.2 /152,4
* Shaft body made of aluminium or steel

Company Profile

Eight reasons to choose us:

1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

Five Core strengths:
1. The first domestic independent R & D manufacturer and 14 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.

air shaft adapter rigid steel core flexible 3 6 inch printing machine parts-2

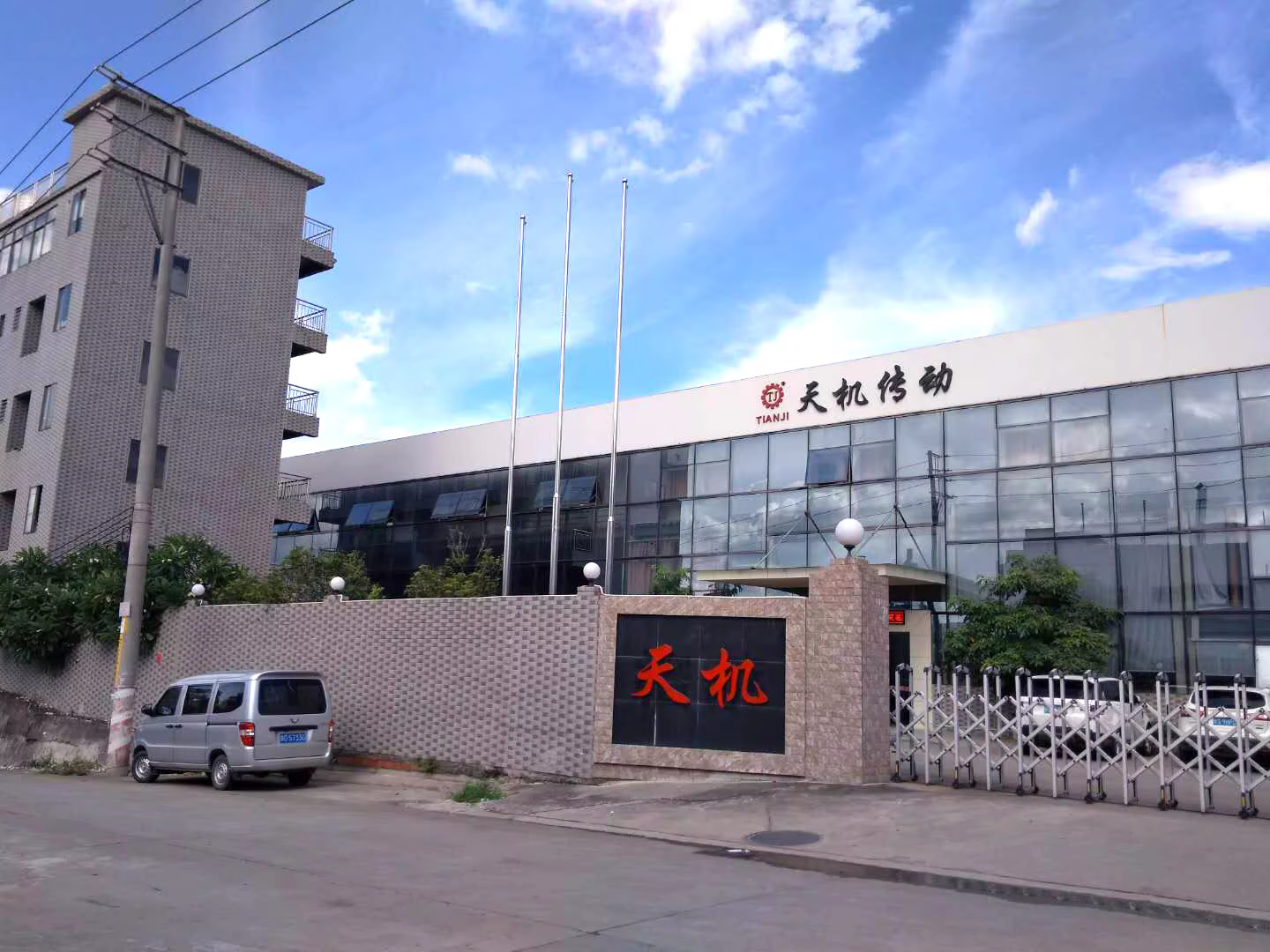

DongGuan TaiJi Speed Reducer Clutch Company
