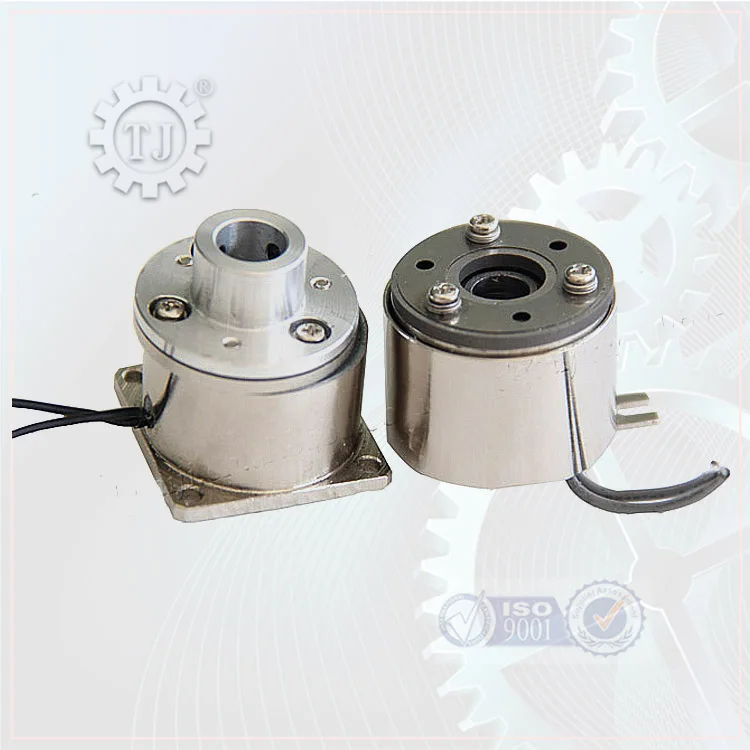

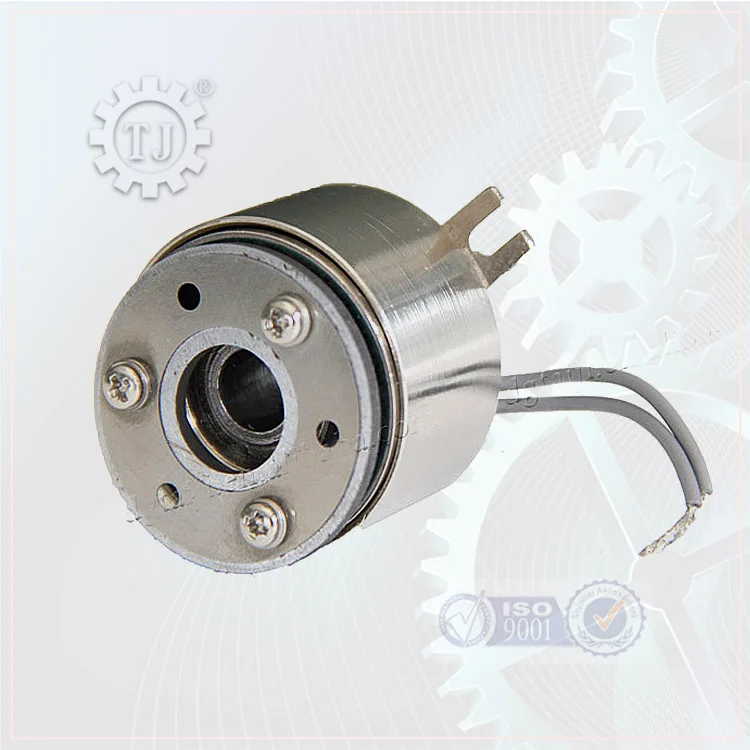

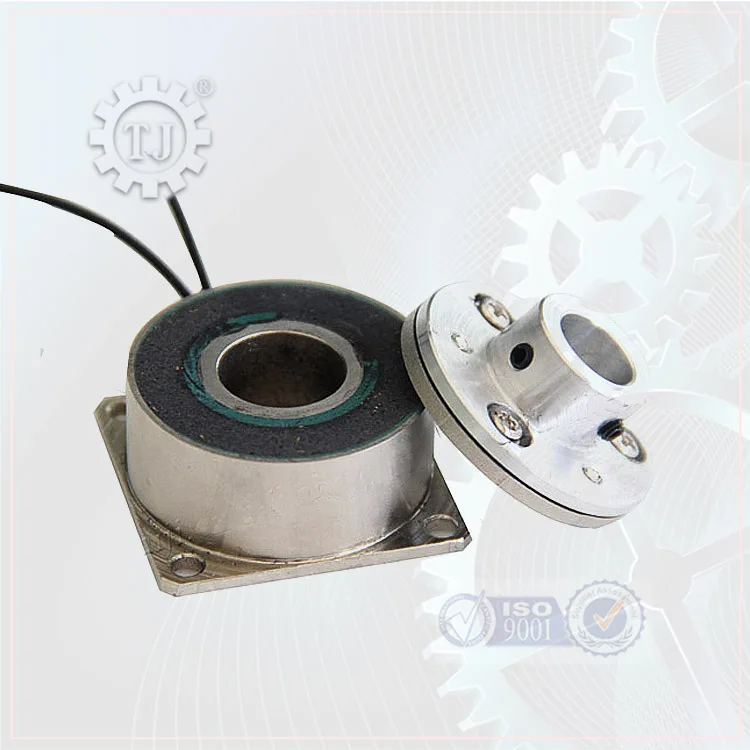

Engineered for precision and reliability, our Customizable OEM Upright Vacuum Micro Miniature Electromagnetic Clutch Brake is the ultimate power transmission solution designed specifically for high-performance copiers and office automation equipment. Operating seamlessly on DC 12V or 24V, this compact component ensures accurate paper feeding, precise timing, and smooth engagement in demanding printing environments. As an OEM partner, we offer extensive customization to perfectly integrate with your existing machinery designs.
Ultra-compact footprint saves critical internal space within modern, slim-profile copiers without compromising torque output.
Specialized upright construction combined with vacuum-assisted engagement ensures rapid response times, zero slippage, and consistent friction performance even after millions of cycles.
Available in both DC 12V and DC 24V configurations to match diverse motherboard power supplies and control systems.
Delivers highly accurate rotational control for paper feed rollers, registration clutches, and fuser drive mechanisms, drastically reducing paper jams.
Fully adaptable shaft sizes, mounting brackets, wire harness lengths, and torque specifications to meet exact OEM engineering requirements.
Utilizes premium wear-resistant friction materials and high-quality electromagnetic coils to withstand continuous, high-frequency operation.

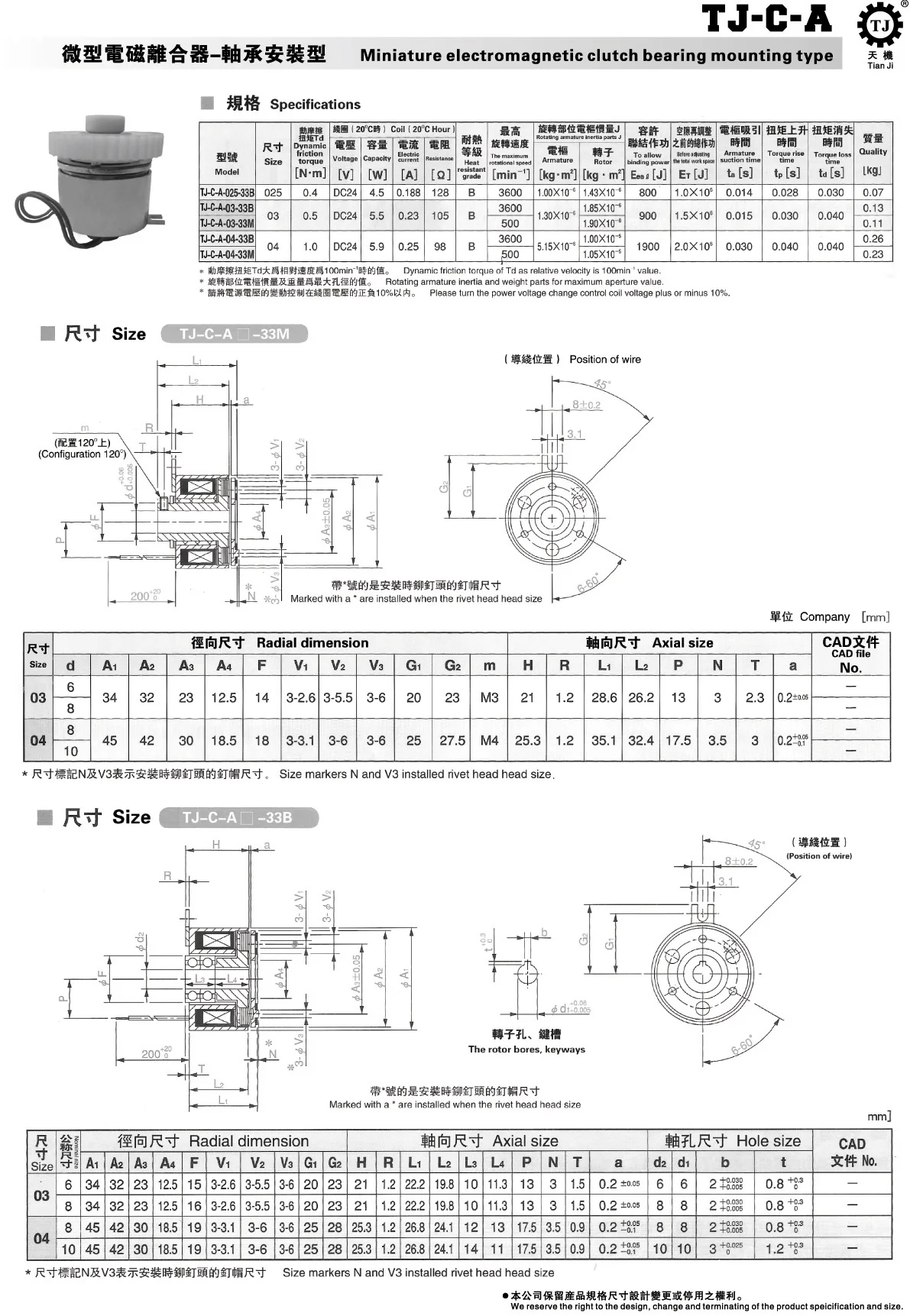

Model |
Size |
Dynamic friction torque[N · m] |
Voltage[V] |
Current[A] |
Capacity[W] |
Resistance[Ω] |
Weight[Kg] |
TJ-C-A-025-33B |
025 |
0.4 |
DC24 |
0.188 |
4.5 |
128 |
0.07 |

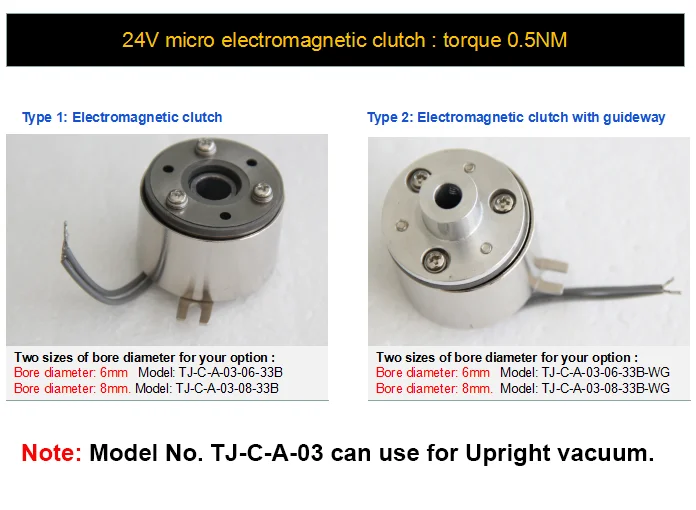

TJ-C-A-03-33B |
03 |
0.5 |
DC24 |
0.23 |
5.5 |
105 |
0.13 |
TJ-C-A-03-33M |
03 |
0.5 |
DC24 |
0.23 |
5.5 |
105 |
0.11 |
TJ-C-A-04-33B |
04 |
1.0 |
DC24 |
0.25 |
5.9 |
98 |
0.26 |
TJ-C-A-04-33M |
04 |
1.0 |
DC24 |
0.25 |
5.9 |
98 |
0.23 |
This power transmission part is specifically engineered for:
From prototype to mass production, our engineering team works directly with you to refine dimensions, torque curves, and electrical parameters.

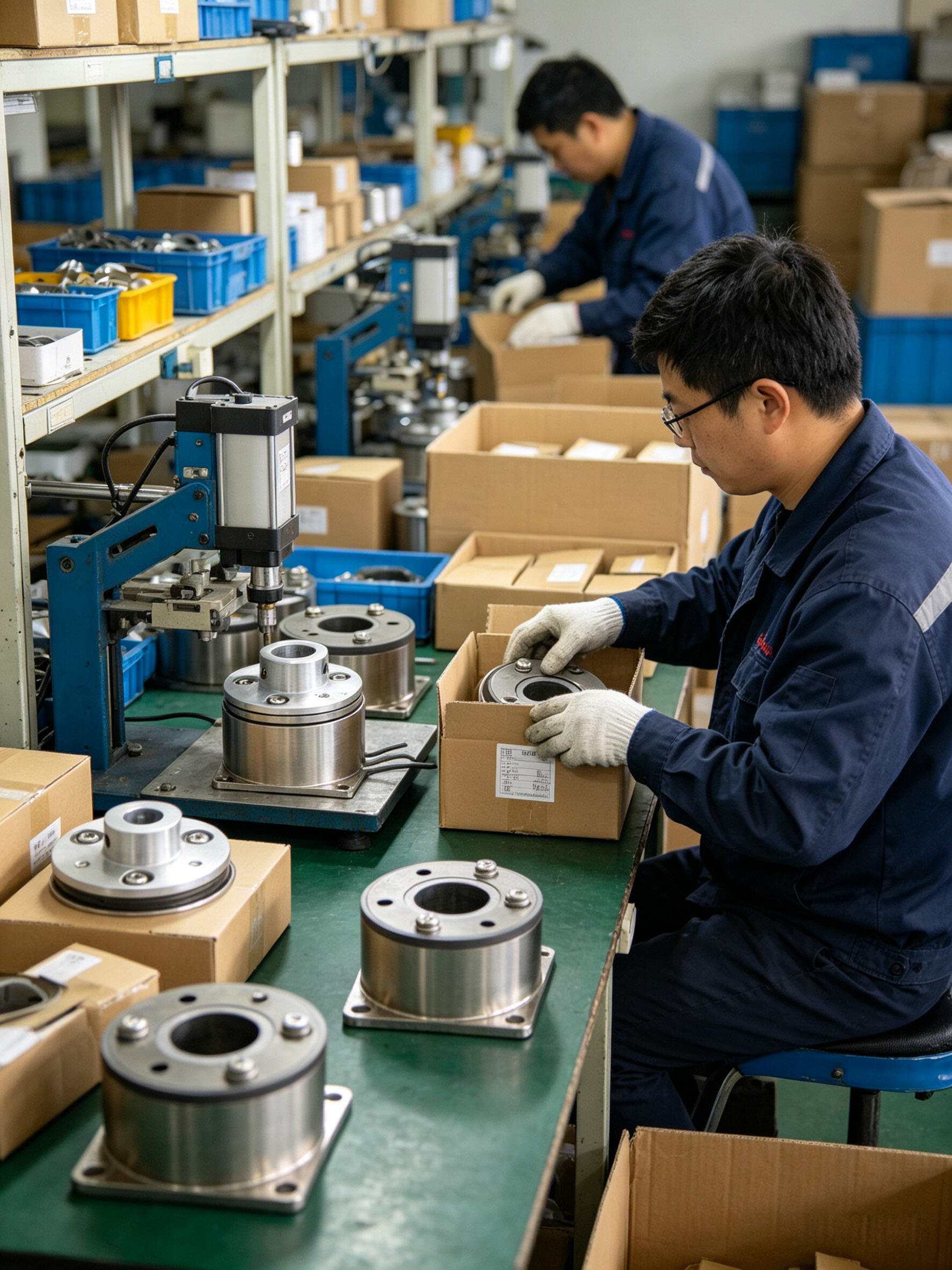

Every unit undergoes rigorous testing for torque consistency, coil resistance, and operational lifespan before shipment.
Competitive pricing models designed for high-volume OEM manufacturing runs.
Stable raw material sourcing and dedicated production lines ensure on-time delivery for your assembly schedules.
To help us provide the perfect clutch/brake solution for your copier, please specify the following when requesting a quote:
📞 Ready to customize your clutch brake?
Contact our OEM engineering team for a tailored quote and technical drawing support
📧 [email protected] | 📱 +86 13326883859 (WhatsApp/WeChat)
📄 Request Datasheet ✉️ Get OEM Quote* All specifications can be fully customized to meet your OEM requirements. Contact us for detailed engineering consultation.
