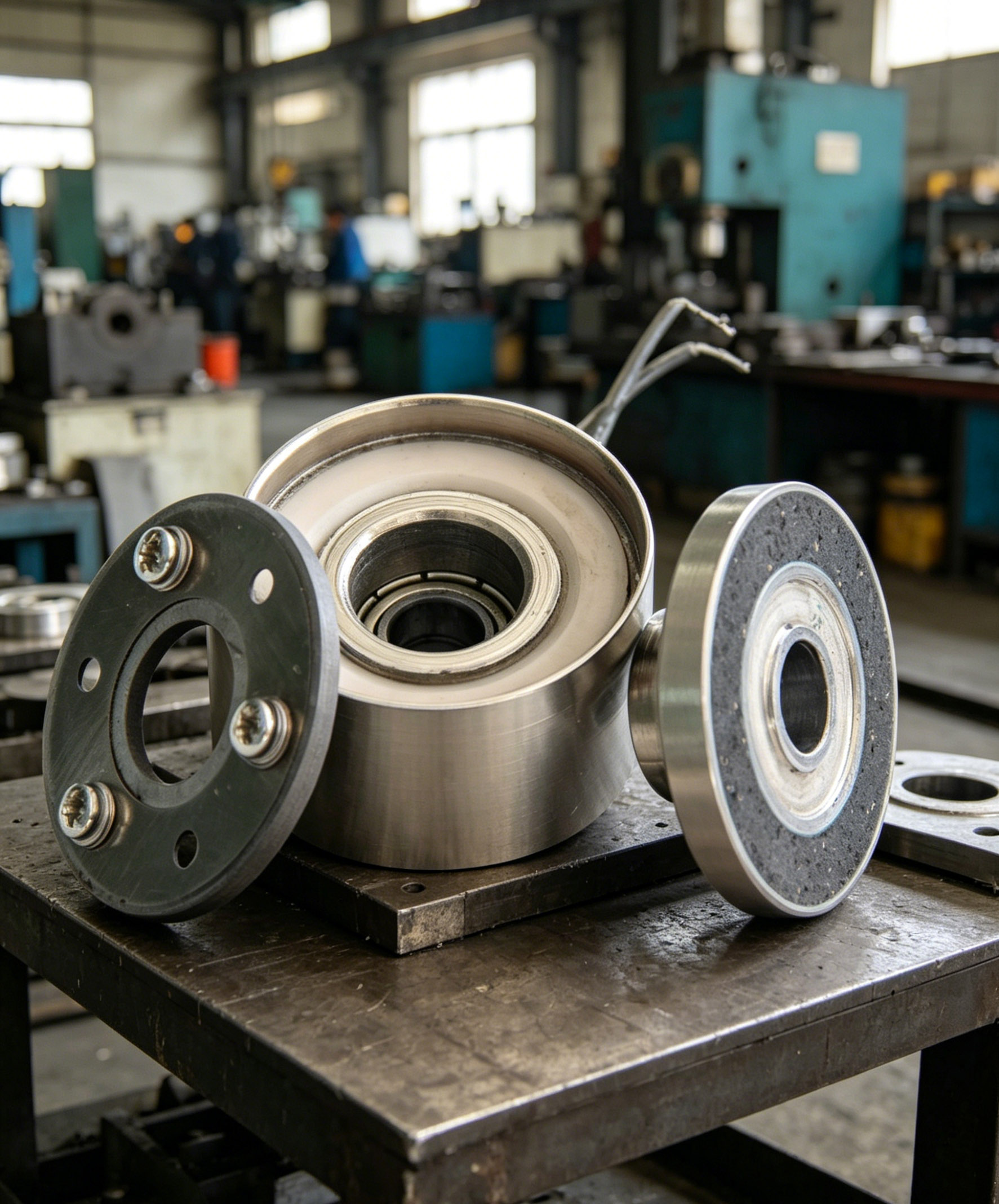

Guangdong Tianji Mini Electromagnetic Brake
Micro Magnetic Brake – Engine Core Component for ATM & Duplicator

⚙️ High Precision | Long Life | Low Noise | Customizable
Spu
890529670
Get a Quote
Product Description

About Product

Highlight

Fast Response: Instant reaction to commands for quick control.
Durability: Excellent heat dissipation ensures long lifespan in high-performance conditions.
Easy Installation: Sealed bearing race eliminates the need for maintenance.
Adjustable Torque: Torque levels can be fine-tuned for various applications.
High Performance: Ideal for industrial equipment like packing and food machines.

🔹 Core Engine Component

Guangdong Tianji presents the Mini Electromagnetic Brake (Micro Magnetic Brake), designed as the "engine-level" braking control component for ATM cash recycling modules and high-speed duplicators/printers. It ensures stable operation, fast response, and high-precision positioning under frequent start-stop conditions.

✅ 5 million cycle life test ✅ CE & RoHS certified ✅ Compatible with major financial & office equipment brands.


📊 Technical Specifications

Parameter TJ-MB-Micro Series
Model TJ-MB08 / TJ-MB12 / TJ-MB20 (Custom available)
Rated Voltage DC 24V (12V / 5V optional)
Braking Torque 0.1 – 1.2 N·m (adjustable)
Response Time ≤ 30 ms
Mechanical Life ≥ 5 million cycles
Operating Temperature -10℃ ～ +60℃
Noise Level ≤ 45 dB
Protection Rating IP40 (upgradable)
Dimensions (OD) Φ20–35mm × Thickness 10–18mm


✨ Core Advantages


🎯 High Precision Braking

  • Micro-torque control, positioning error <0.2mm
  • No residual torque, prevents paper jams

⚡ Fast Response

  • Response time ≤30ms
  • Ideal for frequent start-stop (ATM dispensing/sorting)

🔇 Ultra-Quiet Operation

  • Special damping material, noise ≤45dB
  • Perfect for bank & office environments

🔄 Long Life & Wear Resistance

  • Alloy friction plate + high-temp coil
  • 5 million cycles maintenance-free

💡 Low Power & Low Heat

  • Optimized magnetic circuit, power ≤3W
  • Supports 24/7 continuous operation

🌍 International Certifications

  • CE, RoHS, REACH compliant
  • Export ready for global markets

📌 Main Applications

🏧 ATM Cash Recycling🖨️ High-Speed Duplicator💵 Banknote Validator📠 MFP / Copier🩺 Medical Imaging🤖 Vending Machine

🔧 Customization Services

✔ Guangdong Tianji offers flexible ODM/OEM customizations:

  • 🔹 Mounting pattern & flange shape
  • 🔹 Torque value, voltage, lead wire length
  • 🔹 Shaft bore size (2mm–8mm, non-standard negotiable)
  • 🔹 Dust/oil resistant coating
  • 🔹 Brake release delay adjustment

📐 Free 2D/3D drawings available. Sample lead time: 5 days.

🏭 Quality & Delivery

📦 Packaging

Anti-static tray + moisture-proof bag + export carton

⏱️ Lead Time

Samples: 3-5 days
Bulk order (≥500pcs): 15-20 days

✅ Quality System

ISO 9001:2015 & IATF 16949 certified. 100% full inspection on torque & response time.

🛡️ Warranty

18 months official warranty, lifetime technical support.

🏢 Guangdong Tianji – Micro Brake Specialist

Established 2012, specializing in micro electromagnetic brakes and clutches. Factory area: 8,000㎡, annual capacity: 2 million+ units. Serving global top-tier financial equipment and office equipment OEMs.

Scene imageScene imageScene imageScene imageScene imageScene imageScene imageScene imageScene imageScene image

About Us

Dongguan Taiji Speed Reducer Clutch Co., Ltd. specializes in industrial magnetic powder clutch and brake, electromagnetic clutch and brake, and transmission parts, with 17 years of manufacturing experience. The company offers a wide range of products suitable for automation, food, and packaging equipment, with rated torque from 6~400Nm and maximum speed up to 3600 RPM. Quality control ensures high precision and long service life, supported by certifications and a 1.5-year warranty.
Company overviewCompany overviewCompany overviewCompetitive advantagesCompetitive advantagesCompetitive advantagesCompetitive advantagesCompetitive advantagesCompetitive advantagesPackaging & shipping specificationsProduction workflowFactory profileFactory profileCustomization capabilitiesCustomization capabilitiesTrade show participation

FAQs

When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

How should I place an order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmisson parts. For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

What is your MOQ basis?

Normally, we do not have MOQ request, except the customized mini clutches/brakes.

What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.

What is the term of shipment?

We can arrange with EXW, FOB, CIF etc. You can choose the most convenient one or cost-effective way.
