Dongguan factory: lug type expanding air shafts, steel construction, quick inflation/deflation (2-3 sec), high precision, heavy load capacity. Ideal for printing, packaging, textile, rewinding. Factory direct, customizable.

Get a Quote
Product Description
Expanding Air Shaft Lug Type Spline Steel Inflatable Bearing Core for Rewinder supplier
We are the factory in DongGuan professionally produce transmission parts for machines
Air shaft advantage:
Quick Loading/Unloading and Efficiency Improvement Achieve rapid fixation and detachment of roll materials through inflating/deflating operations (only 2-3 seconds), significantly reducing downtime and meeting high-frequency roll change requirements. No complex mechanical operations or tools required, lowering manual labor intensity, especially ideal for automated production lines.

High-Precision Positioning and Consistency：
After inflation, the shaft tightly adheres to the inner hole of the roll material, ensuring concentricity and uniform tension, preventing misalignment or loosening, and improving finished product quality in processes like printing and coating. Key-type expansion shaft design distributes force application points, balances load pressure, and suits heavy-duty scenarios (e.g., fabric, metal rolls).

Flexibility and Broad Applicability：
Customizable dimensions (length from hundreds of millimeters to over 6 meters, shaft diameter 1-12 inches), adapts to various roll materials of different thicknesses, widths, and specifications. Applicable to multiple industries including printing, papermaking, packaging, textile, and plastic processing, covering both light and heavy industrial needs.

Durability and Easy Maintenance:
Utilizes high-quality steel materials and chrome plating for wear and corrosion resistance, ensuring long service life. Modular design with interchangeable components simplifies repairs and reduces costs; routine maintenance involves checking air tightness, cleaning, and lubrication. High Load-Bearing Capacity Steel materials selected based on requirements enable a single shaft to bear over 1 ton, meeting heavy industrial demands.
Air expanding shaft Feature
Air shaft Introduction:

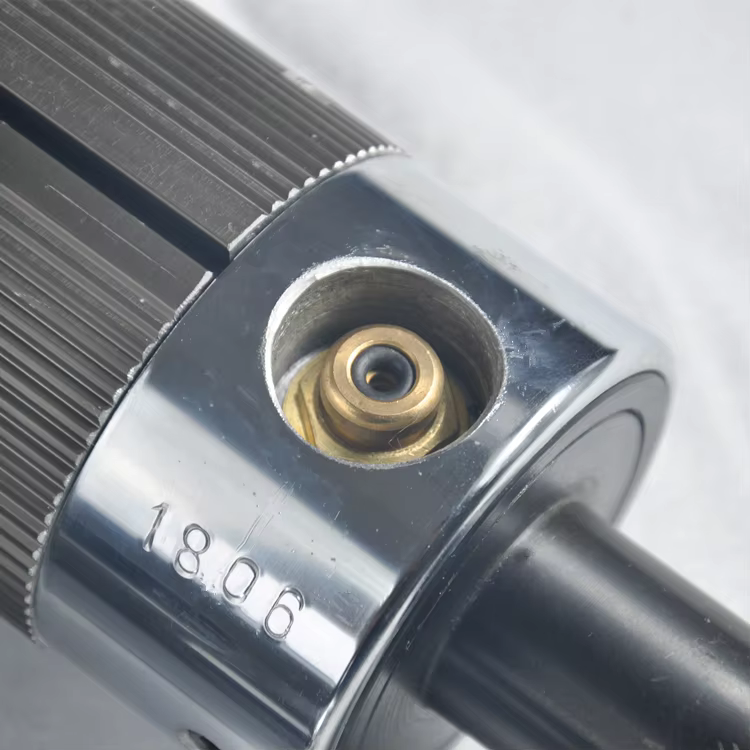

The air shaft (air expansion shaft) introducing foreign advanced production equipment and fabrication technology, using imported airbag, shaft head for the high quality steel products with nigrescent process,attrib wattle using excellent aluminum and hard oxide, use convenient and long operate life. When using, match with our company’s professional configuration of the aerate gun filling gas for the nozzle jet, to make the shaft of off-axle appearance uniform expansion, thereby lock nitrogen-treated barrel,when unloading, press on deflated mouth to deflated, then nitrogen-treated barrel can be unloaded.

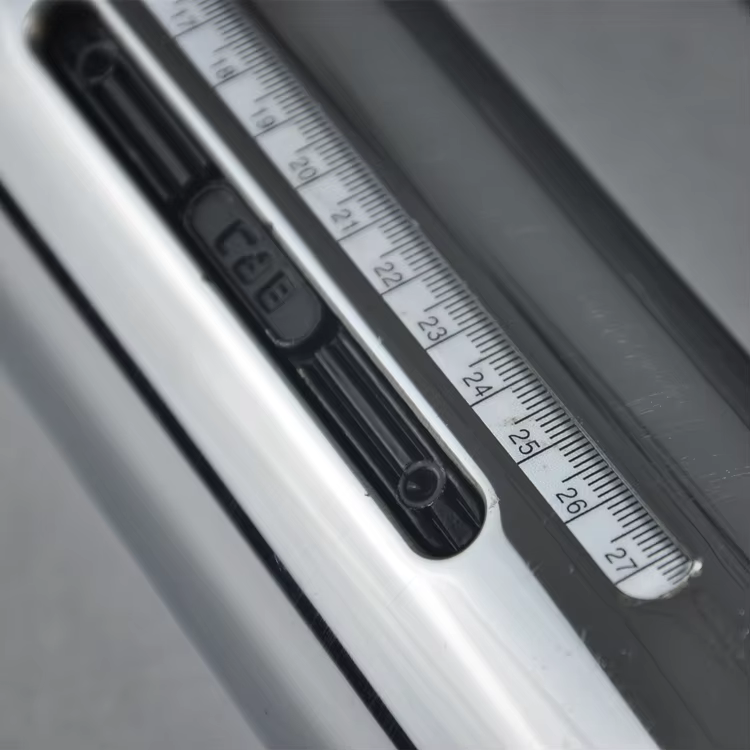

expanding air shaft lug type spline steel inflatable bearing core for rewinder-0 expanding air shaft lug type spline steel inflatable bearing core for rewinder-1

Main Feature:

1.Material and technology from TaiWan
2.Factory directly supply
3.Extensive application and high precision performance
4.Simple installation
5.Durable
6.All specification can be customized.
7.CE qualified.

Performacne & Advantage:

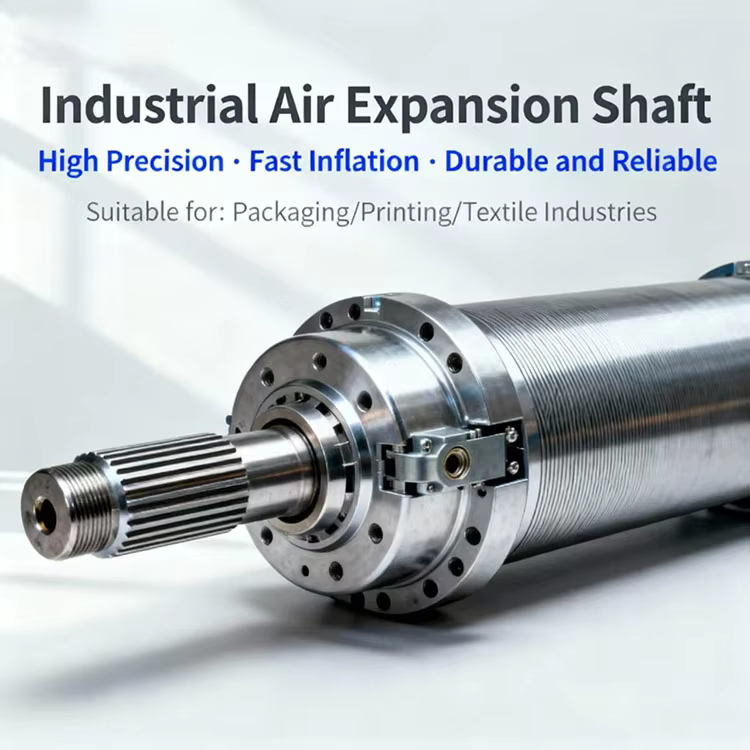

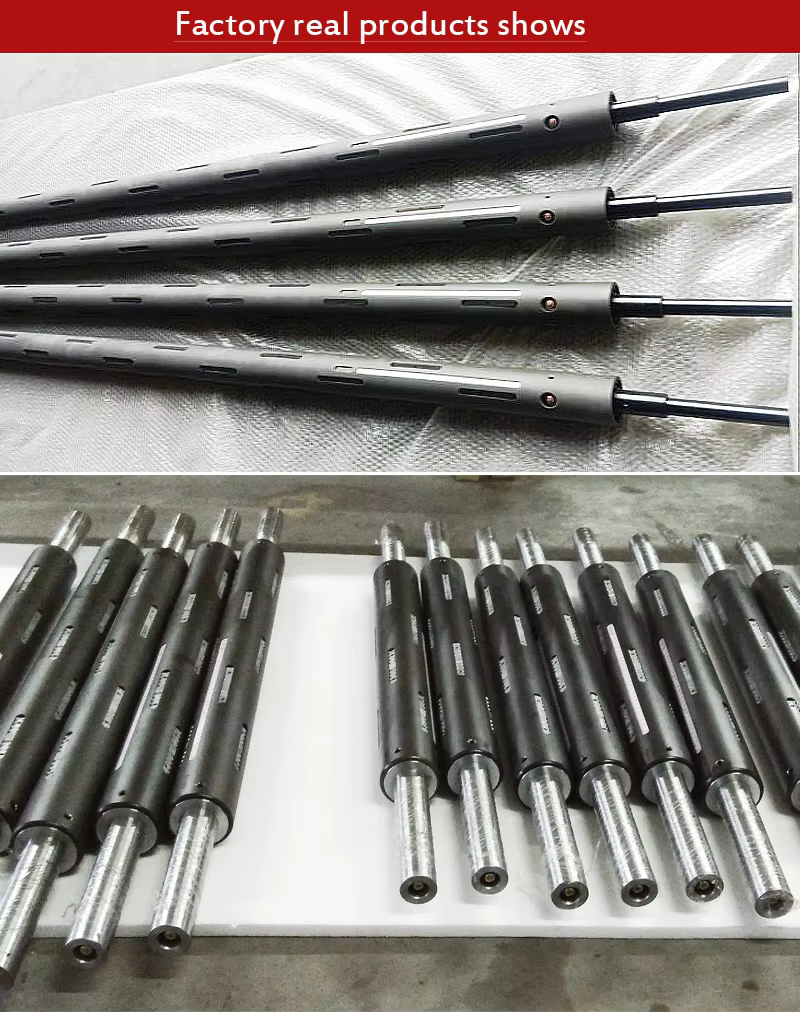

In practical applications,it has advantages of convenient operation,quick, air shaft has big stress area, the stress distribution uniformity etc.
expanding air shaft lug type spline steel inflatable bearing core for rewinder-2
expanding air shaft lug type spline steel inflatable bearing core for rewinder-3

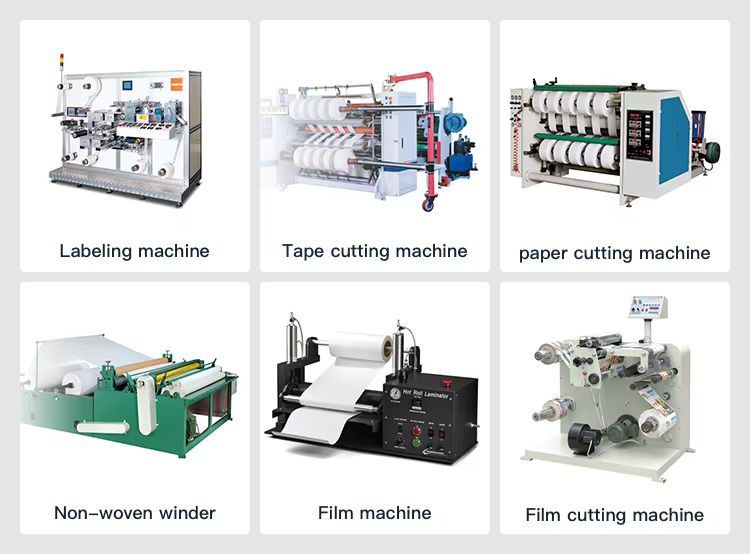

Product Purpose:

It is applicable to winding and unwinding shaft of the related machines in coating, cutting, printing, compounding,paper making,bag making,plastic items,specially the occasion of the high-efficient roundness required or surface winding and unwinding of the paper tube.Moreover,it also can improve efficiency and quality of the products.
expanding air shaft lug type spline steel inflatable bearing core for rewinder-4
Specification

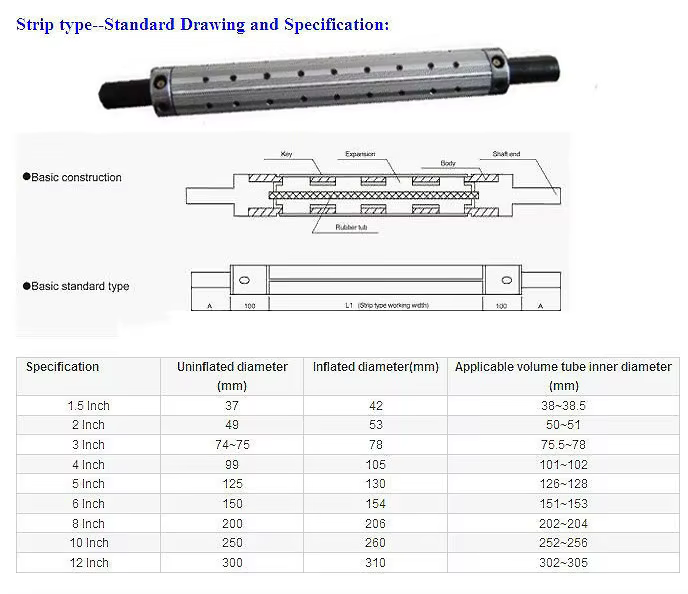

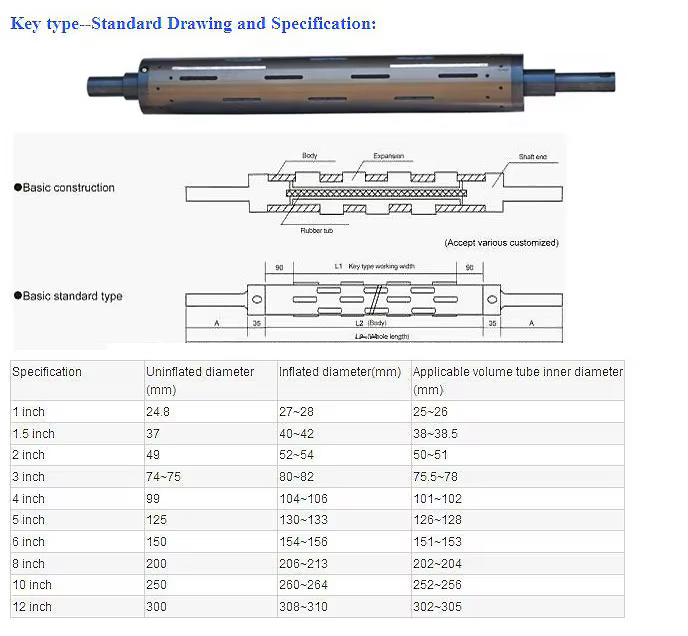

Plate Type(Board Type/Strip Type) Air Shaft - Drawing & Specification:
Product Diameter(D) when not inflatable Diameter in inflatable Wide-used pipe inner diameter
1" standard model 25 NM 28-32 NM 26-30 NM
2" standard model 49 NM 52-54 NM 50.5-52 NM
3" standard model 74 NM 79-81 NM 75.5-78.5 NM
6" standard model 149 NM 155-157 NM 151-153 NM
L2+70 Length 2" 3" 6"
600-1000 NM 8-12 (KG) 15-20 (KG) Calculated
1000-1300 NM 12-14 (KG) 20-25 (KG) Calculated
1300-1600 NM 14-16 (KG) 25-30 (KG) Calculated
1600-2000 NM 16-20 (KG) 30-38 (KG) Calculated
气涨轴规格图1
气涨轴规格图2
气涨轴规格图3
气涨轴规格图4
气涨轴规格图5
气涨轴规格图6
气涨轴规格图7
气涨轴规格图8
气涨轴规格图9
气涨轴规格图10
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
expanding air shaft lug type spline steel inflatable bearing core for rewinder-5
expanding air shaft lug type spline steel inflatable bearing core for rewinder-6
Company Profile

expanding air shaft lug type spline steel inflatable bearing core for rewinder-7

Why Choose Us

expanding air shaft lug type spline steel inflatable bearing core for rewinder-8

FAQ

1. When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts. For air shafts, air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.

4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.

5. What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
