Engineered with CNC precision for proven reliability. Premium magnetic materials and non-asbestos linings ensure high friction, fast response, long life. Your trusted supplier.
This clutch product is designed by professional engineers with many years of experiences, and production using CNC boring and finishing machines,and be proved good in all using.We use the finest materials available for magnetic components to yield high friction indexes,as well as premium non-asbestos linings to improve response time and extend working life. We will be reliable clutch supplier for you.
|

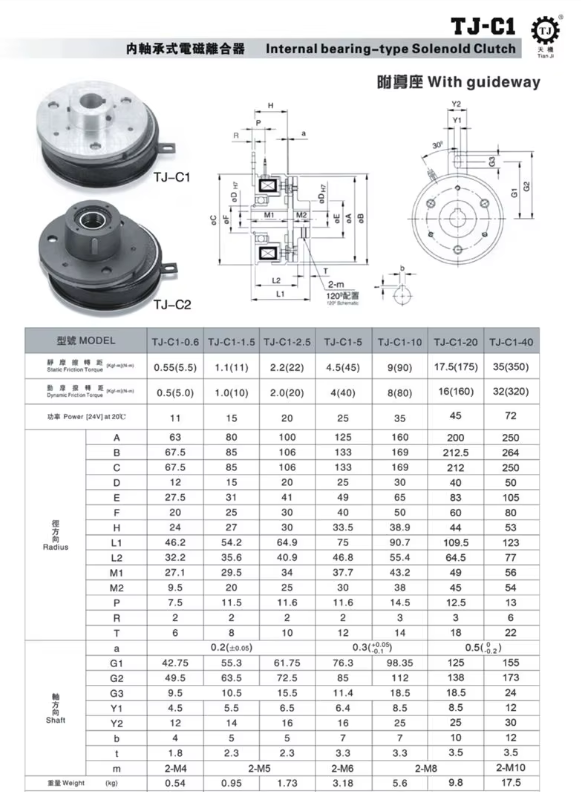

Electromagnetic Clutch Parameter
|
|||||||
| MODEL | TJ-C1-0.6 | TJ-C1-1.5 | TJ-C1-2.5 | TJ-C1-5 | TJ-C1-10 | TJ-C1-20 | TJ-C1-40 |
| Static Friction Torque(Nm) | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 |
| Dynamic Friction Torque(Nm) | 5 | 10 | 20 | 40 | 80 | 160 | 320 |
| Power (W) 24V 20°C | 11 | 15 | 20 | 25 | 35 | 45 | 60 |
| Weight (kg) | 0.54 | 0.95 | 1.73 | 3.18 | 5.6 | 9.8 | 17.5 |
|

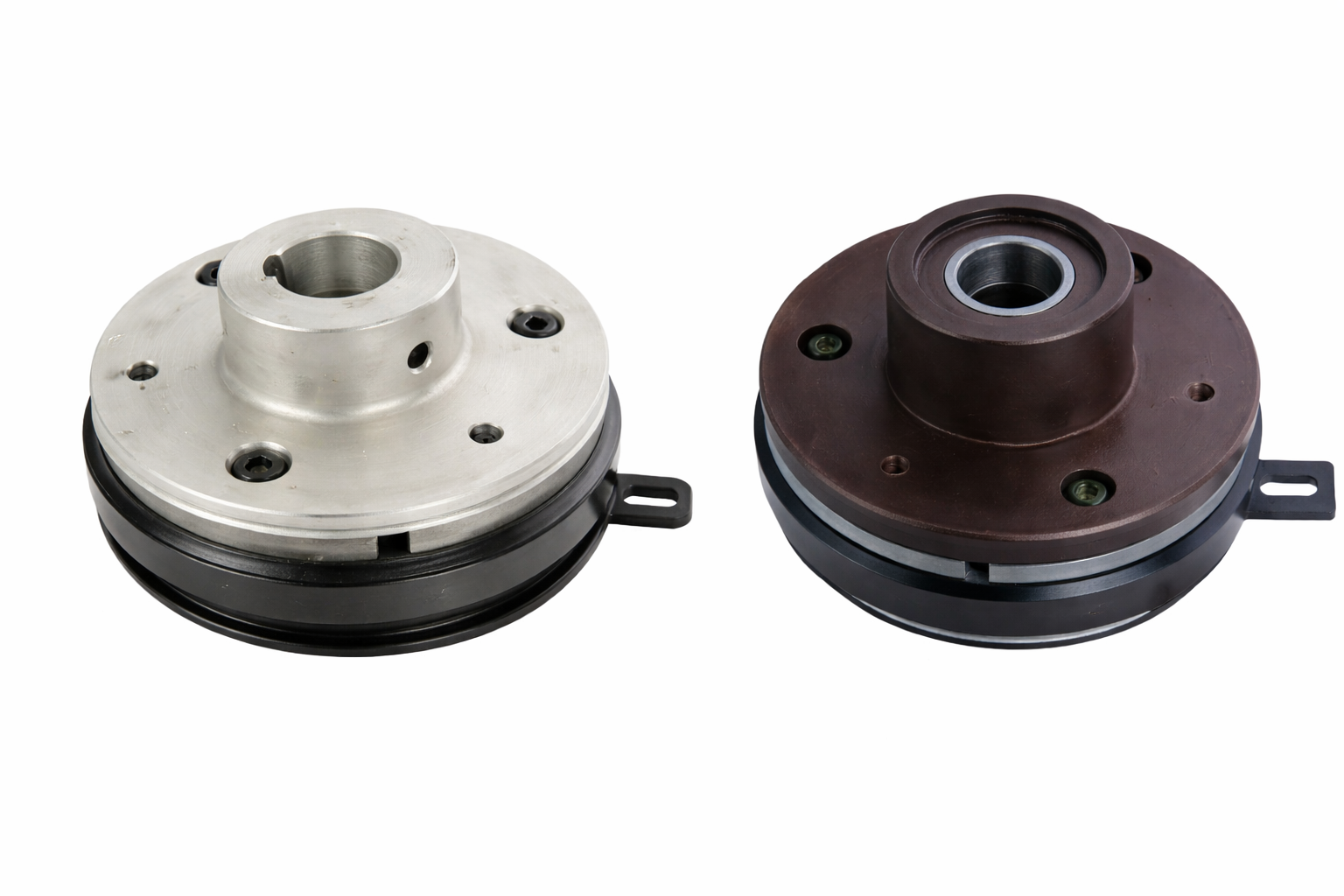

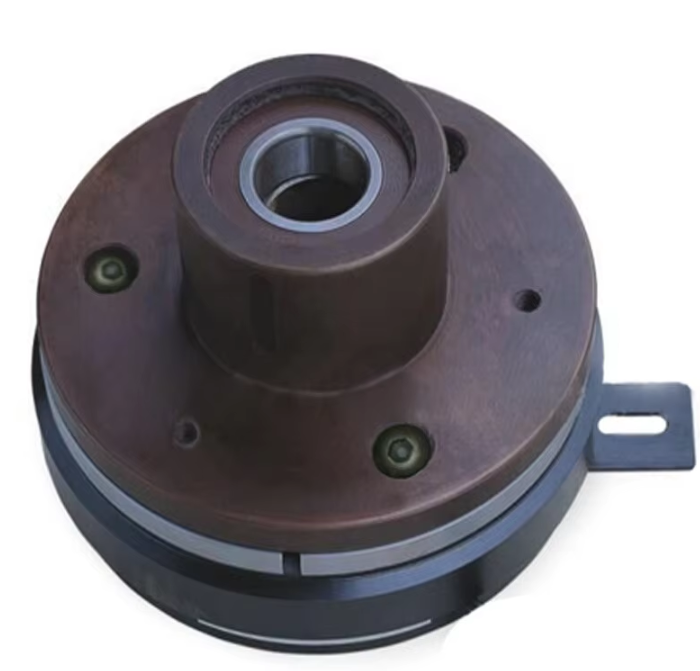

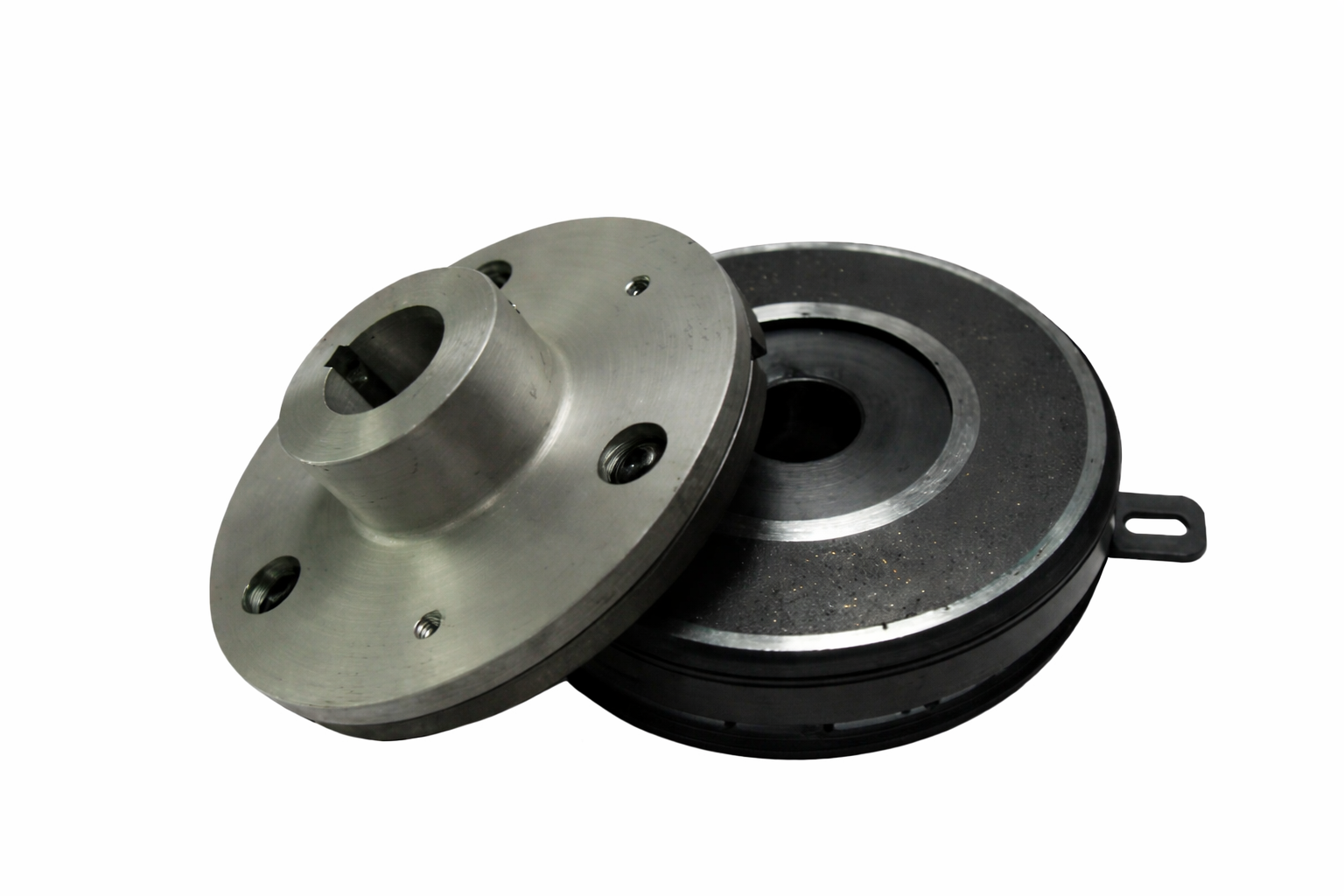

Electromagnetic Clutch Detail
Electromagnetic Clutch Special features: 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications. |
Why do you choose us?
Your choice,We promise!
Eight reasons to choose us:
1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.
Five Core strengths:
1. The first domestic independent R & D manufacturer and 13 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts. For air shafts, air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.
5. What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
